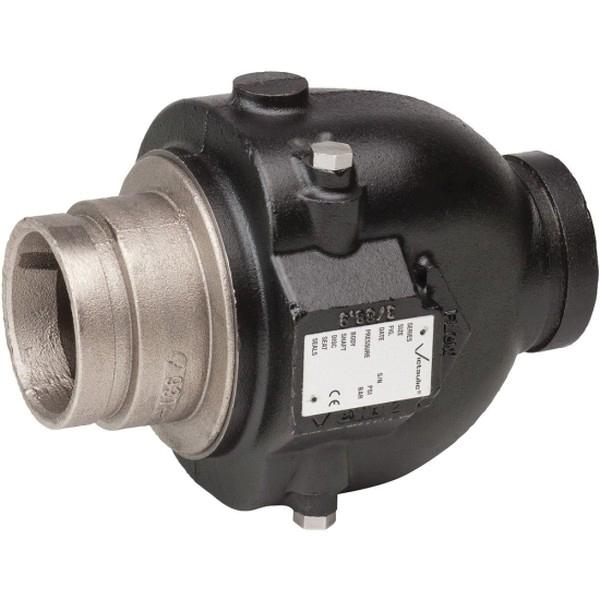

Victaulic® FireLock™ 717H Series V030717PH0 High Pressure Check Valve With Riser Check Kit, 3 in Nominal, NPT, 365 psi
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC717H-3
- MPN: V030717PH0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® FireLock™ High Pressure Check Valve With Riser Check Kit, 717H Series, 3 in Nominal, NPT Connection, 365 psi, Water Media, 9.62 in Inlet to Outlet Length, 3.53 in Top to Inlet Center, 315 Cv Flow Coefficient (Cv), Material Standard: ASTM A536/B733, Ductile Iron Body, Ductile Iron Seat, Nitrile/EPDM Seal, Ductile Iron Disc, EPDM Softgoods, 60 deg F, 3.5 in Dia x 9.62 in L
| Body Material | : | Ductile Iron |
| Connection Type | : | NPT |
| Dimensions | : | 3.5 in Dia x 9.62 in L |
| Disc Material | : | Ductile Iron |
| Flow Coefficient (Cv) | : | 315 Cv |
| Inlet to Outlet Length | : | 9.62 in |
| Material Standard | : | ASTM A536/B733 |
| Media | : | Water |
| Nominal Size | : | 3 in |
| Pressure Rating | : | 365 psi |
| Seal Material | : | Nitrile/EPDM |
| Seat Material | : | Ductile Iron |
| Series | : | 717H Series |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 60 deg F |
| Top to Inlet Center | : | 3.53 in |
- Features a stainless steel disc which seats against the O-ring seal, when mounted on the electroless nickel-plated face
