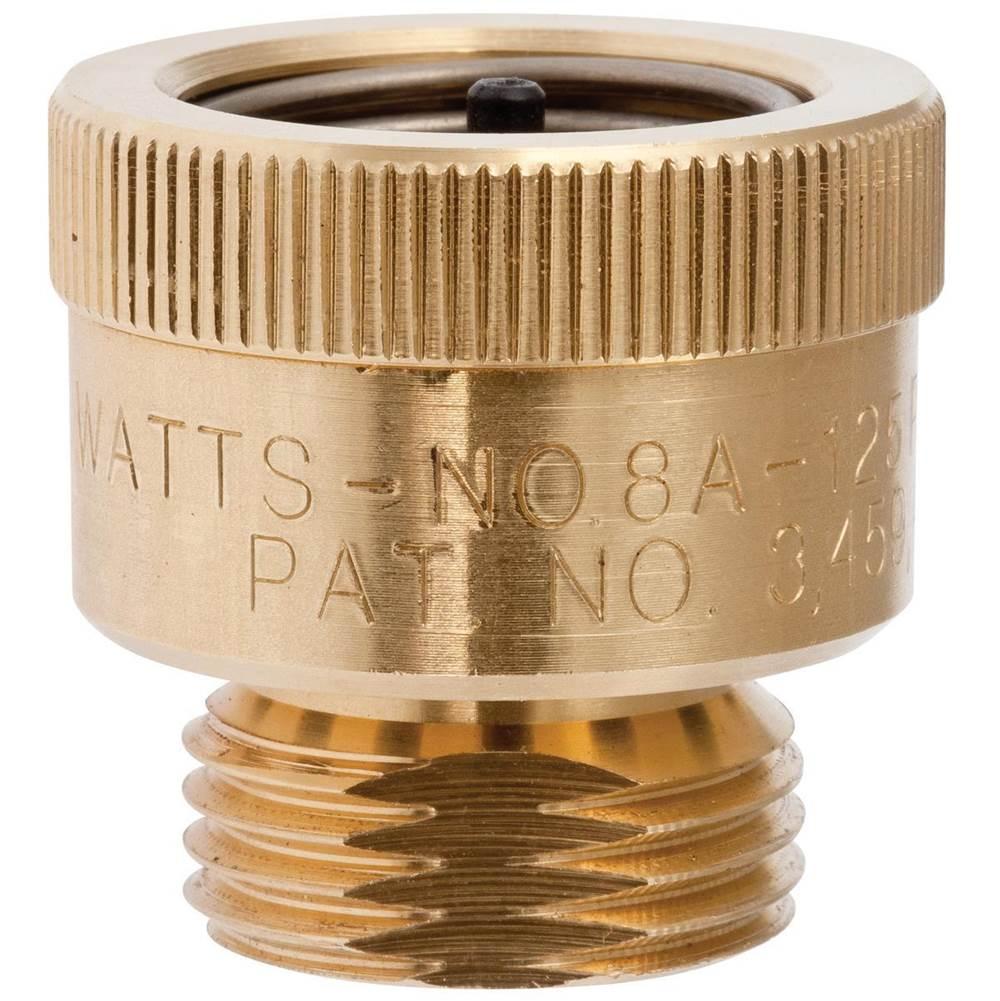

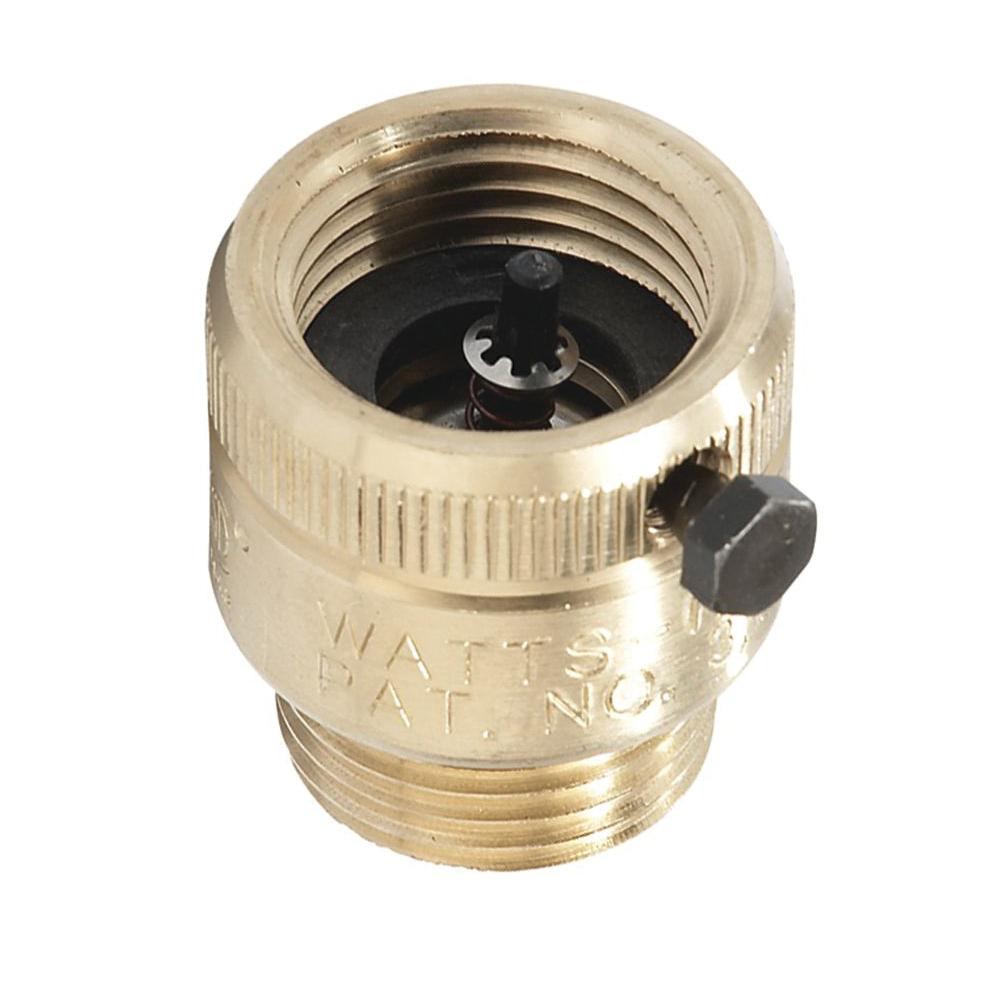

WATTS® 8 Series 8A 3/4 Non-Removable Vacuum Breaker, 3/4 x 3/4 in Nominal, Female x Male, 125 psi, Brass Body
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WTS8A-34
- MPN: 8A 3/4
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This 3/4 in hose bibb vacuum breaker backflow preventer permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water into the potable water supply due to backsiphonage. It consists of a brass body construction, stainless steel working parts and a rubber diaphragm and disc. It is furnished with exclusive non-removable feature and equipped to allow sill cock to be drained. This hose bibb is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas and general outside gardening uses. Check with local inspection authorities for installation requirements.
WATTS® Non-Removable Vacuum Breaker, 8 Series, 3/4 x 3/4 in Nominal, Female x Male Connection, 125 psi, Brass Body, 33 to 180 deg F, 1-1/2 in OD x 1-1/2 in H
| Body Material | : | Brass |
| Connection Type | : | Female x Male |
| Dimensions | : | 1-1/2 in OD x 1-1/2 in H |
| Nominal Size | : | 3/4 x 3/4 in |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 125 psi |
| Series | : | 8 Series |
| Temperature Rating | : | 33 to 180 deg F |
- Durable rubber diaphragm and disc for consistent positive seating
- Ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas and general outside gardening uses
- No special tools required for servicing
- Manual drain
- Designed to prevent the backflow of polluted water from entering into the potable water supply
- Non-removable once installed
