Apollo® 4A-105-A2F APL4A105A2F
  1. pin-int

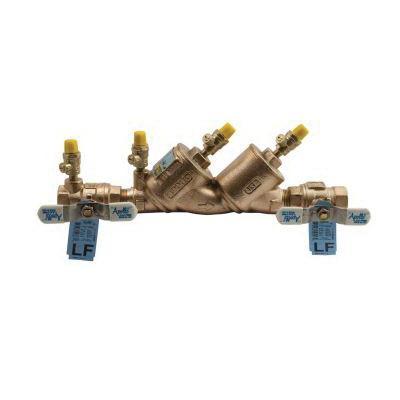

Apollo® 4A-100 Series 4A-105-A2F Standard Double Check Valve Assembly With Ball Valve, 1 in, Press, Lead-Free

Apollo® 4A-100 Series 4A-105-A2F Standard Double Check Valve Assembly With Ball Valve, 1 in, Press, Lead-Free

  • Manufacturer: Aalberts Integrated Piping Systems
  • Brand Name: Apollo®
  • Part#: APL4A105A2F
  • MPN: 4A-105-A2F
  • UPC: 670750109089
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Apollo® valves model DC4A and DCLF4A series lead-free and non-lead-free double check valves prevent contamination of the potable water supply due to back siphonage or backpressure from substances that are objectionable to the potable water supply, but non-health hazards. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This made in America assembly features ball valve shut-offs with stainless steel handles and nuts as standard and carries the 5 year Apollo® valves factory warranty.

Apollo® Standard Double Check Valve Assembly With Ball Valve, 4A-100 Series, 1 in Nominal, Press Connection, 175 psi Pressure, Media: Water, Handle Actuator, 14-5/8 in Inlet to Outlet Length, 4 in Top to Inlet Center, Bronze Body, Lead-Free/Contains Lead: Lead-Free, 33 to 180 deg F, Dimensions: 3-1/4 in H, Domestic/Import: Domestic

Actuator Type      :      Handle
Body Material      :      Bronze
Connection Type      :      Press
Dimensions      :      3-1/4 in H
Domestic/Import      :      Domestic
Inlet to Outlet Length      :      14-5/8 in
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      1 in
Pressure Rating      :      175 psi
Series      :      4A-100 Series
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      4 in
  • Low pressure loss
  • Captured spring cartridge check valves
  • Compact, yet easy-to maintain
  • Ball valve shut-offs with stainless steel handles and nuts standard
  • Top access for fast testing and maintenance
  • Threaded testcock protectors
  • Corrosion-resistant construction
  • No special tools required
  • Chloramine-resistant elastomers
  • Designed, cast, machined, assembled and tested in the USA
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_4A_105_A2F_Specification_Sheet.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Apollo_Valves_4A_105_A2F_Specification_Sheet.pdf
