This air gaps for reduced pressure zone assembly, 1-1/4 to 3 in Series 009 and 909, 1-1/4 to 2 in Series 009M1 and 2 in 009M2, provide an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).

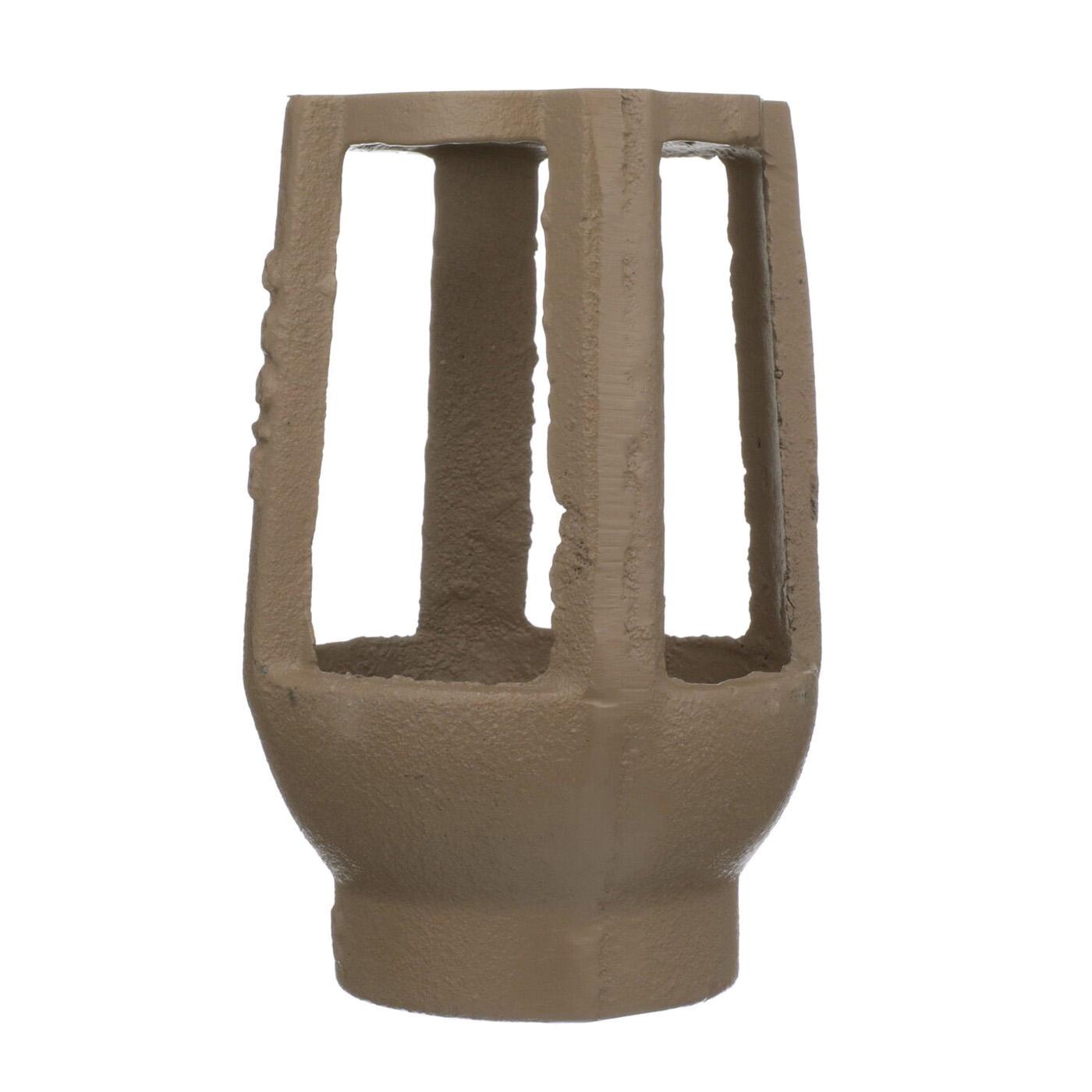

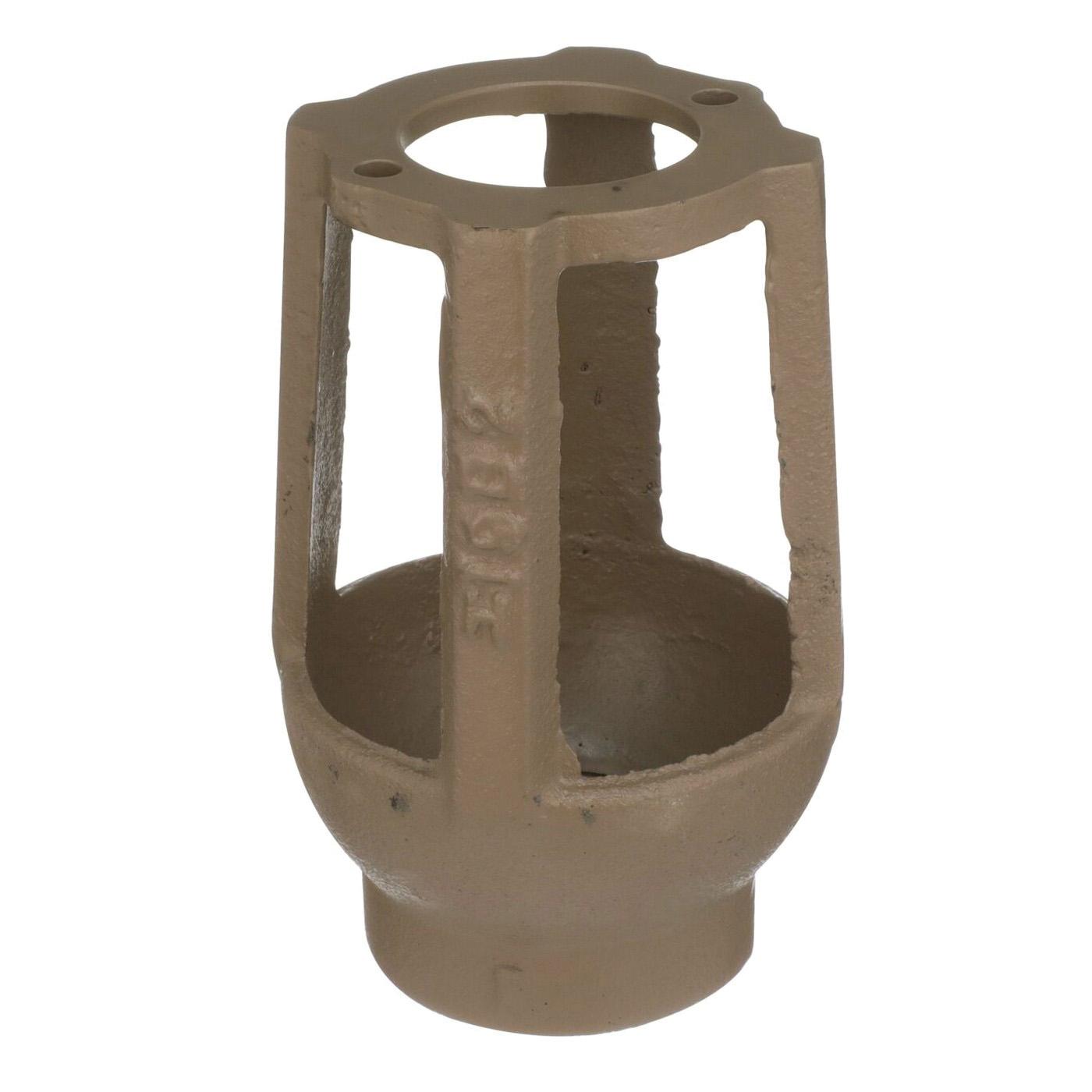

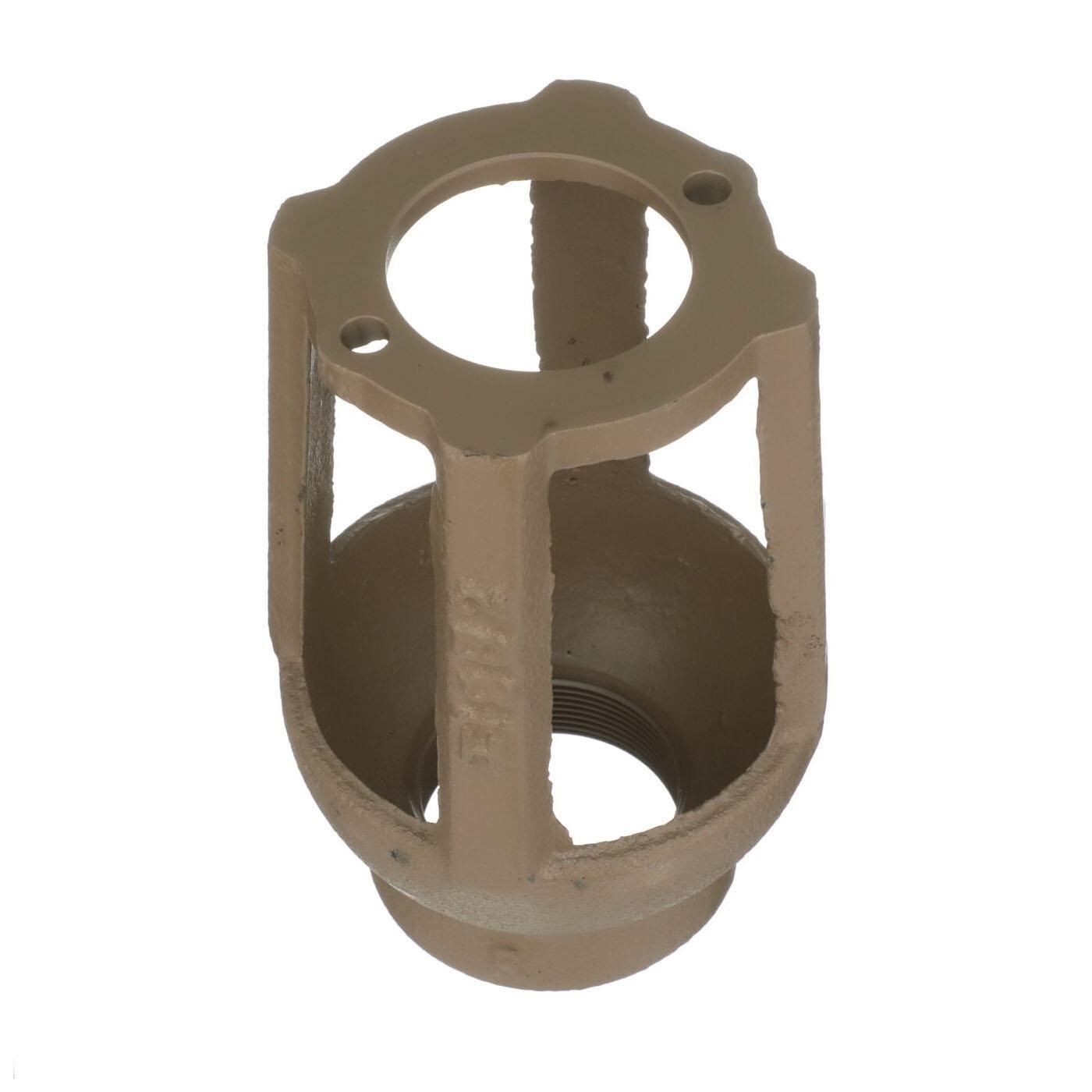

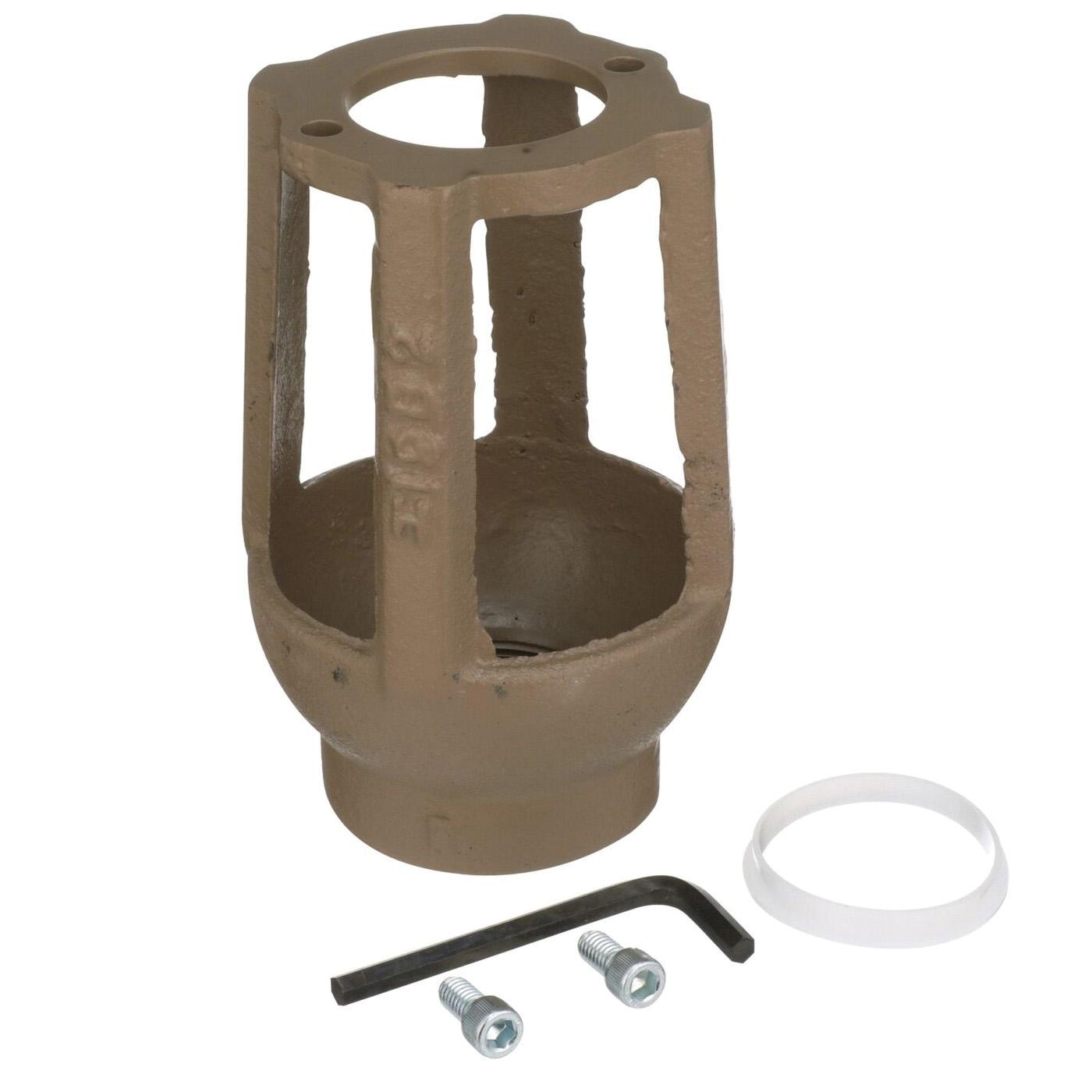

WATTS® Air Gap, 1-1/4 to 3 in, For Use With: 1-1/4 to 3 in 009/909 Series, 1-1/4 to 2 in 009M1 Series and 2 in 009M2 Series Backflow Preventers, Cast Iron, Finish: Epoxy-Coated, 6-3/4 in H x 4-3/8 in W
Dimensions | : | 6-3/4 in H x 4-3/8 in W |
Finish | : | Epoxy-Coated |
Material | : | Cast Iron |
Plumbing and Flow Control | : | Plumbing and Flow Control |
Size | : | 1-1/4 to 3 in |
Suitable For Use With | : | 1-1/4 to 3 in 009/909 Series, 1-1/4 to 2 in 009M1 Series and 2 in 009M2 Series Backflow Preventers |
