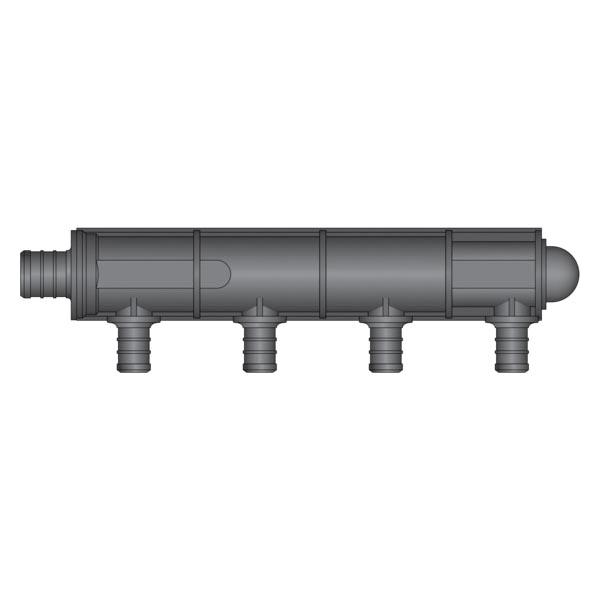

HeatLink® 13204 Multi-Port Tee, 1 -Inlet, 4 -Outlet, 3/4 in F2159 PEX Inlet, 1/2 in PEX Outlet, Polyphenylsulfone
- Manufacturer: HeatLink Group
- Brand Name: HeatLink®
- Part#: HTL13204
- MPN: 13204
- UPC: 627998010738
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The use of PEX tubing in a potable hot water plumbing system with an operating temperature above 140 deg F or system pressure above 80 psig or highly aggressive water quality or any combination there of can significantly reduce the service life of the tubing. HeatLink® requires following the guidelines described in plastics pipe institute TN-53, guide to chlorine resistance ratings of PEX pipes and tubing for potable water applications and HeatLink® info 37, domestic hot water recirculation systems.
HeatLink® Multi-Port Tee, 1 Inlets, 4 Outlets, 3/4 in Inlet Connection, F2159 PEX Inlet Connection, 1/2 in Outlet Connection, PEX Outlet Connection, 100 psi, 180 deg F Operating Temperature, Polyphenylsulfone, Additional Information: 1.26 in OD, One End Closed Outlet
| Additional Information | : | 1.26 in OD, One End Closed Outlet |
| Inlet Connection Size | : | 3/4 in |
| Inlet Connection Type | : | F2159 PEX |
| Material | : | Polyphenylsulfone |
| Number of Inlets | : | 1 |
| Number of Outlets | : | 4 |
| Operating Temperature | : | 180 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | PEX |
| Pressure Rating | : | 100 psi |
- ASTM F2159 compliant PEX insert fitting
- High performance polymer
- Outstanding resistance to hot chlorinated water
- High resistance to mineral acids, alkali and salt solutions
- Stainless steel press sleeves sold separately
Instruction/Installation Manual
