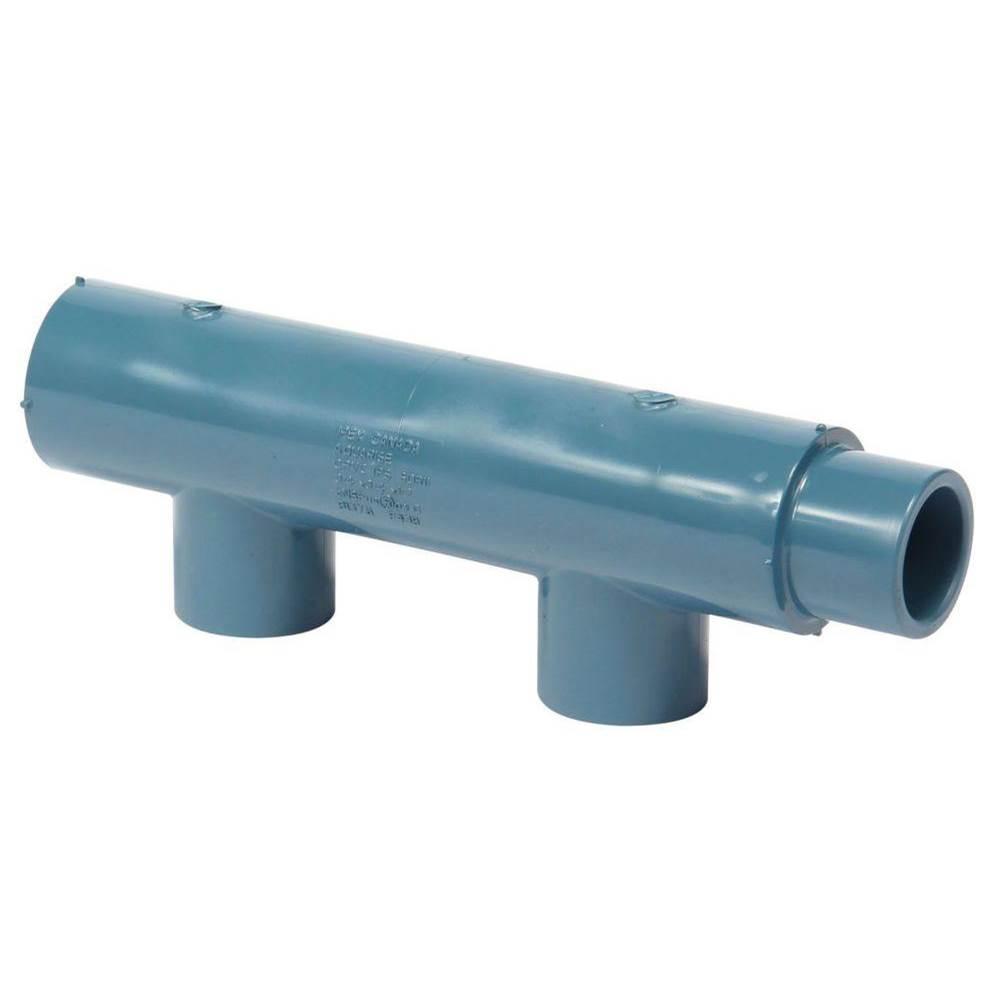

AquaRISE® U-DO-IT Series 359060 Manifold, 6-1/4 in L, 3/4 in Socket x Spigot x Socket Inlet, 1/2 in, CPVC
- Manufacturer: IPEX®
- Brand Name: AquaRISE®
- Part#: AQR359060
- MPN: 359060
- UPC: 622454416840
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
AquaRISE®, a hot and cold potable water distribution system for commercial, industrial and high buildings. Based on over 15 years experience designing and manufacturing industry leading CPVC systems, AquaRISE® offers numerous benefits over metal with a system that is fully-approved for noncombustible applications. AquaRISE® also comes with technical support and jobsite trouble-shooting all from one reliable supplier.
AquaRISE® Manifold, U-DO-IT Series, 3/4 in Inlet Connection, Socket x Spigot x Socket Inlet Connection, 1/2 in Outlet Connection, Socket x Spigot x Socket Outlet Connection, 150 psi, 73 deg F Operating Temperature, CPVC, Teal Blue, 6-1/4 in Overall Length, Additional Information: 1-3/8 in H
| Additional Information | : | 1-3/8 in H |
| Color | : | Teal Blue |
| Inlet Connection Size | : | 3/4 in |
| Inlet Connection Type | : | Socket x Spigot x Socket |
| Material | : | CPVC |
| Operating Temperature | : | 73 deg F |
| Outlet Connection Size | : | 1/2 in |
| Outlet Connection Type | : | Socket x Spigot x Socket |
| Overall Length | : | 6-1/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | U-DO-IT Series |
- AquaRISE® SDR 21 for cold water use provides a long-term pressure rating of 200 psi at 73 deg F (23 deg C)
- Thanks to its advanced materials and rugged design, AquaRISE® SDR 11 for hot water provides long-term pressure ratings of 400 psi at 73 deg F (23 deg C) and 150 psi at 160 deg F (71 deg C)
- Unlike metal piping which may pit, scale and degrade over time, AquaRISE®'s rugged thicker walls and excellent corrosion-resistance ensure years of consistent flow and maintenance-free performance, even in demanding hot water recirculation applications
- Designed to be safely used in hot and cold water distribution systems
- AquaRISE® achieved a flame spread rating of not more than 25 and a smoke development classification of not more than 50
- IPEX® supplies high-quality CPVC cement, primer and applicators for enabling tough, permanent welded pipe fitting connections
Specification Sheet
