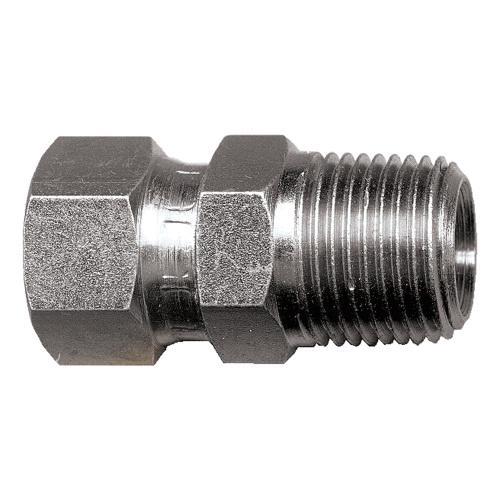

ACCUTEK® S3520 Series S3520-32M Hydraulic Connector, 2 in Female 37 deg JIC Flare Swivel x 2 in MNPT, Steel
- Manufacturer: Fairview Fittings & Manufacturing
- Brand Name: ACCUTEK®
- Part#: FRVS3520-32M
- MPN: S3520-32M
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ACCUTEK® Hydraulic Connector, Series: S3520 Series, Connector Fitting, 2 in Connection Size 1, Female 37 deg JIC Flare Swivel Connection Type 1, 2 in Connection Size 2, MNPT Connection Type 2, Female JIC Swivel|MNPT Connection, Steel, Steel Material Construction, Hose Assembly and Tube For Use With, 1125 psi Maximum Operating Pressure, -65 to 250 deg F Operating, Additional Information: 0.035 in Wall Thickness
| Additional Information | : | 0.035 in Wall Thickness |
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 2 in |
| Connection Type 1 | : | Female 37 deg JIC Flare Swivel |
| Connection Type 2 | : | MNPT |
| Connection Type | : | Female JIC Swivel|MNPT |
| Fitting Type | : | Connector |
| For Use With | : | Hose Assembly and Tube |
| Material Construction | : | Steel |
| Material | : | Steel |
| Maximum Operating Pressure | : | 1125 psi |
| Operating Temperature | : | -65 to 250 deg F |
| Series | : | S3520 Series |
- For use with hose assemblies and tube up to 5000 psi
Instruction/Installation Manual
