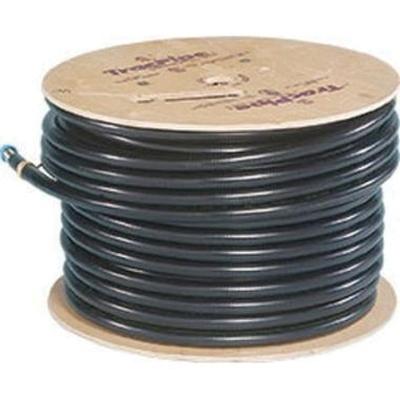

TracPipe® FGP-CS-500-250 Tubing, 1/2 in, 250 ft L, Stainless Steel, 0.01 in Thick Wall, 0.597 in ID, 0.888 in OD
- Manufacturer: Omega Flex, Inc
- Brand Name: TracPipe®
- Part#: TRCFGP-CS-500-250
- MPN: FGP-CS-500-250
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
TracPipe® Tubing, 1/2 in Nominal, 0.597 in Inside Diameter, 0.888 in Outside Diameter, 250 ft Length, Stainless Steel, Material Construction: Stainless Steel, 0.01 in Wall Thickness, 125 psi Working Pressure, Resistance Properties: Crush, Additional Information: Black Proprietary Polymer Jacket
| Additional Information | : | Black Proprietary Polymer Jacket |
| Inside Diameter | : | 0.597 in |
| Length | : | 250 ft |
| Material Construction | : | Stainless Steel |
| Material | : | Stainless Steel |
| Nominal Size | : | 1/2 in |
| Outside Diameter | : | 0.888 in |
| Resistance Properties | : | Crush |
| Wall Thickness | : | 0.01 in |
| Working Pressure | : | 125 psi |
- Semi-rigid 300 Series stainless steel tubing
- Proprietary polymer energy dissipating properties
- ASTM E-84 compliant not to exceed 25 flame spread and 50 smoke density
- Heavy one-piece abrasion and lightning-resistant jacket, pulls easier and lays straighter decreasing install time
- Highest pressure ratings tested by IAS
- Highest capacity ratings (EHD)
- Higher flow rates can reduce pipe size and save money
- Listed to ANSI LC 1-2005, as well as factory mutual (FM) For seismic resistance and Underwriters Laboratories (UL) Listed for 1, 2 and 4 hr through penetration fire stop systems without removal of the conductive jacket
