HeatLink® 92305RS HTL92305RS
  1. pin-int

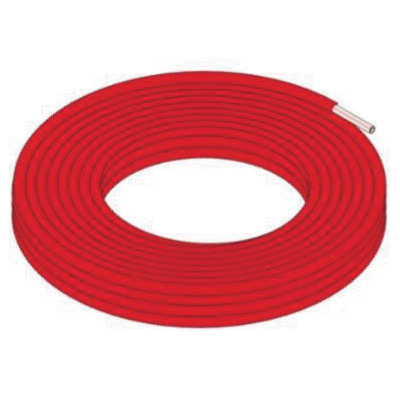

HeatLink® PureLink® Plus 92305RS Coil Tubing, 1/2 in, 300 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD

HeatLink® PureLink® Plus 92305RS Coil Tubing, 1/2 in, 300 ft L, Polyethylene, 0.07 in Thick Wall, 0.475 in ID, 5/8 in OD

  • Manufacturer: HeatLink Group
  • Brand Name: HeatLink®
  • Part#: HTL92305RS
  • MPN: 92305RS
  • UPC: 627998004652
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Pipe-in-pipe is PureLink® Plus red PEX-a tubing that has been inserted into a protective sheath. The flexible, impact-resistant polypropylene sheath designed as a raceway for electrical installations provides mechanical and UV protection to the PEX-a carrier tubing. The sheath allows for easy replacement of the PEX-a carrier tubing if needed. Red colored sheaths make for easy identification of hot water lines.

HeatLink® PureLink® Plus Coil Tubing, 1/2 in Nominal, 0.475 in Inside Diameter, 5/8 in Outside Diameter, 300 ft Length, Polyethylene, Material Construction: Polyethylene, Red, 3 in Bend Radius, 0.07 in Wall Thickness, 160 psi Working Pressure, -40 to 275 deg F

Bend Radius      :      3 in
Color      :      Red
Inside Diameter      :      0.475 in
Length      :      300 ft
Material Construction      :      Polyethylene
Material      :      Polyethylene
Nominal Size      :      1/2 in
Outside Diameter      :      5/8 in
Temperature Rating      :      -40 to 275 deg F
Wall Thickness      :      0.07 in
Working Pressure      :      160 psi
  • Flexible easy installations
  • UV stabilized
  • Resists scaling and corrosion
  • Freeze and chemical resistance
