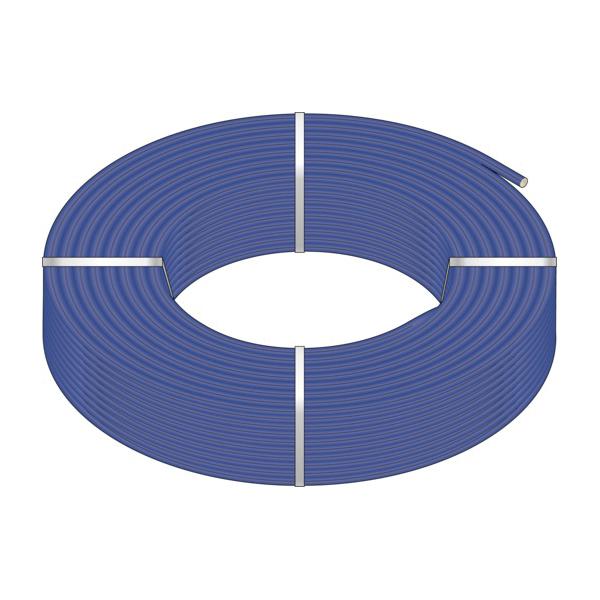

HeatLink® 20000 Series 20122BW Tube, 3/4 in, 100 ft L, Polyethylene, 0.097 in Thick Wall, 0.671 in ID, 7/8 in OD
- Manufacturer: HeatLink Group
- Brand Name: HeatLink®
- Part#: HTL20122BW
- MPN: 20122BW
- UPC: 627998017140
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The HeatLink® system approach ensures that all of our potable products can be used together to create a reliable and easy-to-install system that meets all of your installation needs. Our colored-wall PEX-a tubing continues the tradition of usability and dependability that you have come to trust. Cross-linked polyethylene tubing, crosslinking occurs during the extrusion process resulting in more uniform and higher degree in cross linking, as well as significantly improved material properties, such as flexibility, chemical resistance and durability.
HeatLink® Tube, 20000 Series, 3/4 in Nominal, 0.671 in Inside Diameter, 7/8 in Outside Diameter, 100 ft Length, Polyethylene, Material Construction: Polyethylene, Blue, 4-1/2 in Bend Radius, 0.097 in Wall Thickness, 100 psi Working Pressure, 180 deg F
| Bend Radius | : | 4-1/2 in |
| Color | : | Blue |
| Inside Diameter | : | 0.671 in |
| Length | : | 100 ft |
| Material Construction | : | Polyethylene |
| Material | : | Polyethylene |
| Nominal Size | : | 3/4 in |
| Outside Diameter | : | 7/8 in |
| Series | : | 20000 Series |
| Temperature Rating | : | 180 deg F |
| Wall Thickness | : | 0.097 in |
| Working Pressure | : | 100 psi |
- Clean and non-toxic
- Resists scaling and corrosion
- Quiet no water hammer noise
- Equalized pressure drops, minimize hot or cold surges
- Durable
- Reliable installation
- Low friction losses
- Flexible tubing means fewer fittings
- Freeze-resistant
- UV stabilized and chlorine-resistance
Instruction/Installation Manual
