HoldRite® PEXRite™ 704 Turn Out PEX Support, 3/8 to 1/2 in Pipe, Nylon
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR704
- MPN: 704
- UPC: 671119107043
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

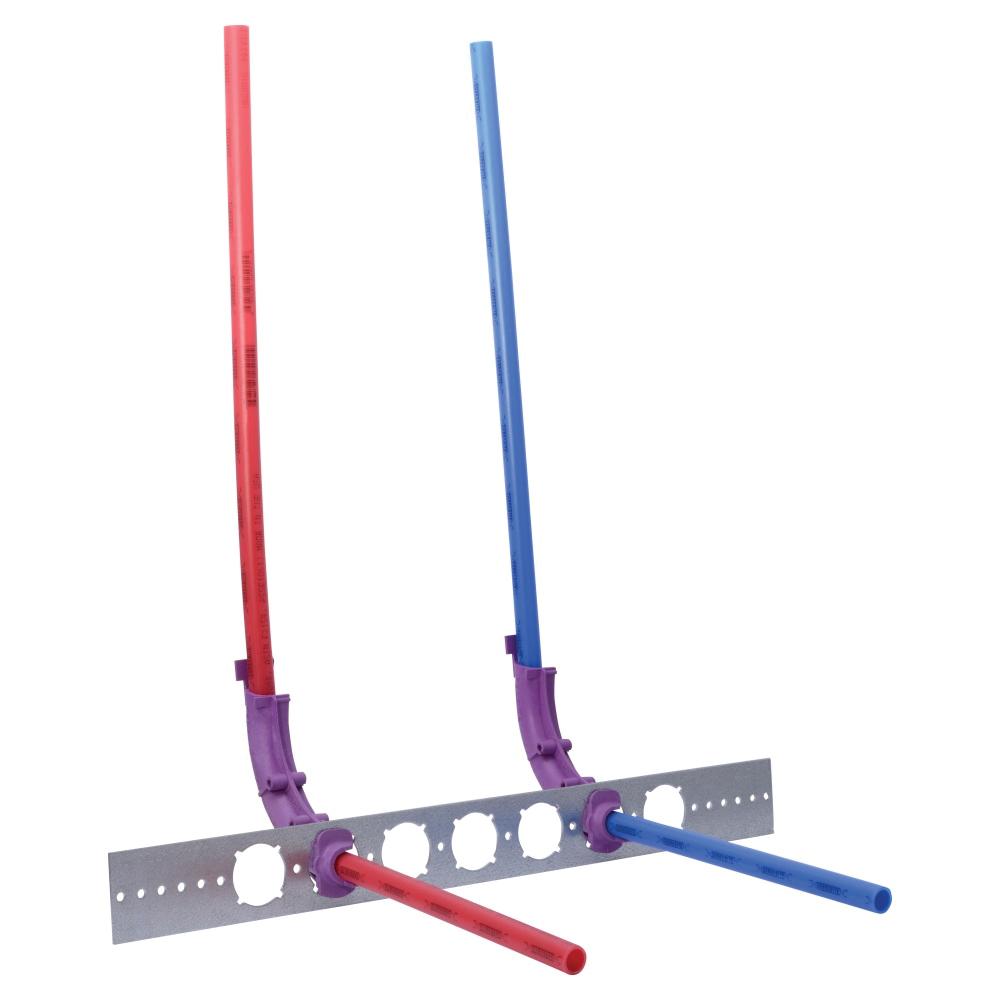

Turn-out PEX supports reduce in-wall fittings and concealed joints when bending the pipe. Provides a 360 deg turning radius and a torch-free environment at the stub-out location.
HoldRite® Turn Out PEX Support, 3/8 to 1/2 in Pipe, Nylon, Purple, -10 to 180 deg F, 3-1/4 in Overall Width, 5-1/2 in Overall Height
| Color | : | Purple |
| Material | : | Nylon |
| Overall Height | : | 5-1/2 in |
| Overall Width | : | 3-1/4 in |
| Pipe Size | : | 3/8 to 1/2 in |
| Temperature Rating | : | -10 to 180 deg F |
- Integrates with #103, #110-R, and #709 series brackets
- Can be installed directly to stud
- Eliminates the need for costly copper bullets
- Compatible with all PEX tubing manufacturers
