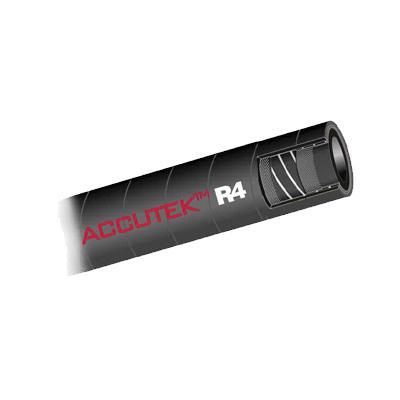

ACCUTEK® HR4-20-Cut 2-Textile Spiral Ply Hydraulic Section Hose, 1-1/4 in Nominal, 200 psi, Synthetic Rubber Tube
- Manufacturer: Fairview Fittings & Manufacturing
- Brand Name: ACCUTEK®
- Part#: FRVHR4-20-CUT
- MPN: HR4-20-Cut
- UPC: 741330057264
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
ACCUTEK® 2-Textile Spiral Ply Hydraulic Section Hose, Series: HR4 Series, Hose Type: Spiral Hose, 1-1/4 in Nominal, 1-1/4 in Inside Dia, 1-3/4 in Outside Dia, Synthetic Rubber Tube, Rubber Cover, Black Hose Color, 6 in Bend Radius, 200 psi, 250 deg F Temperature High, -40 deg F Temperature Low, Additional Information: 29 inHg Vacuum Rate, Import
| Additional Information | : | 29 inHg Vacuum Rate, Import |
| Bend Radius | : | 6 in |
| Cover Material | : | Rubber |
| Hose Color | : | Black |
| Hose Type | : | Spiral Hose |
| Inside Diameter | : | 1-1/4 in |
| Nominal Size | : | 1-1/4 in |
| Outside Diameter | : | 1-3/4 in |
| Pressure Rating | : | 200 psi |
| Series | : | HR4 Series |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
| Tube Material | : | Synthetic Rubber |
- Wire helix prevents collapsing under vacuum service
- Not suitable for use with phosphate esters
Specification Sheet
