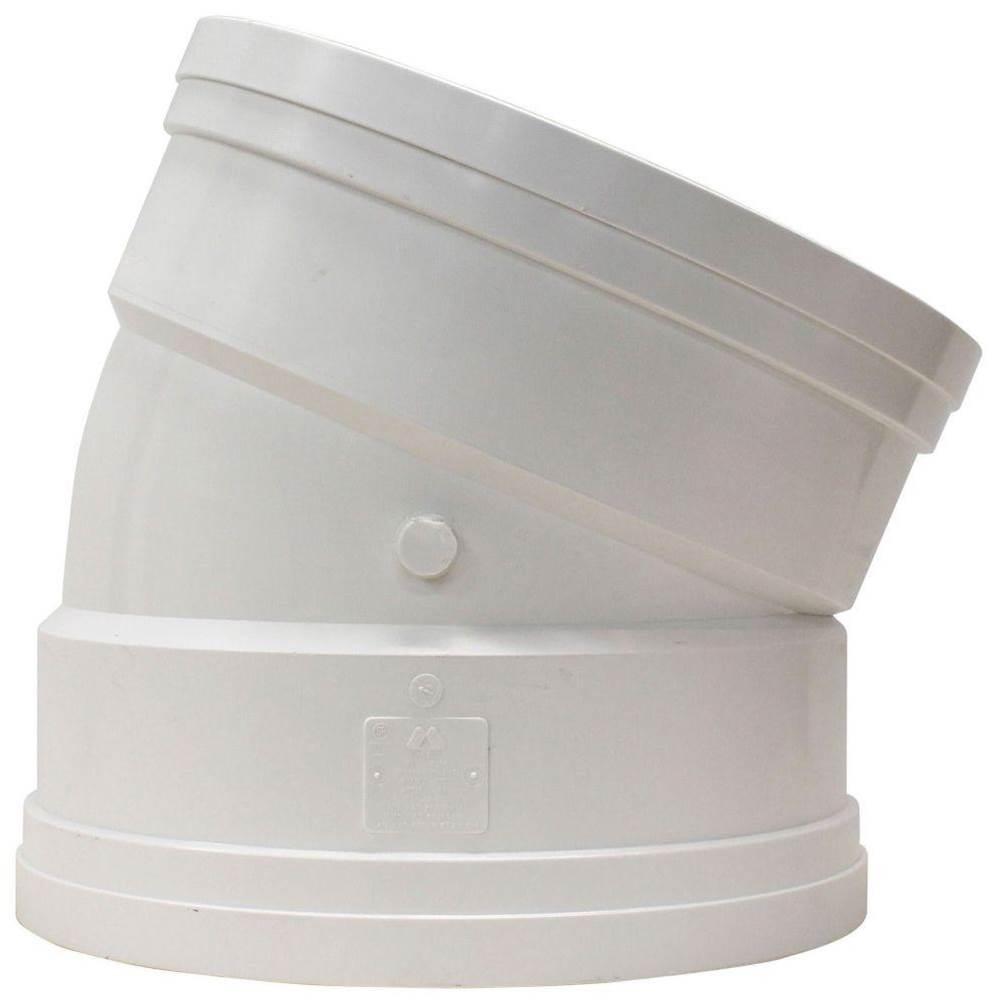

Ring-Tite® 043954 22-1/2 deg Elbow, 24 in Gasketed x 24 in Gasketed, PVC, Green, SDR 35
- Manufacturer: Aliaxis Group SA
- Brand Name: Ring-Tite®
- Part#: SGF230-600
- MPN: 043954
- UPC: 622454439542
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Ring-Tite® and Enviro-Tite piping systems are DR35 and DR28 sewer pipes manufactured to demanding ASTM and CSA standards. The two products are identical except for Enviro-Tite having a minimum recycled material content of 50%. Both products have tight joints that can withstand well in excess of both the ASTM and CSA requirements.
Ring-Tite® 22-1/2 deg Elbow, 22-1/2 deg Elbow Fitting, 24 in Connection Size 1, Connection Type 1: Gasketed, 24 in Connection Size 2, Connection Type 2: Gasketed, Gasket|Gasket Connection, PVC, Material Construction: PVC, Green, SDR 35, 23.39 in ID x 24.8 in OD x 0.71 in THK
| Color | : | Green |
| Connection Size 1 | : | 24 in |
| Connection Size 2 | : | 24 in |
| Connection Type 1 | : | Gasketed |
| Connection Type 2 | : | Gasketed |
| Connection Type | : | Gasket|Gasket |
| Dimensions | : | 23.39 in ID x 24.8 in OD x 0.71 in THK |
| Fitting Type | : | 22-1/2 deg Elbow |
| Material Construction | : | PVC |
| Material | : | PVC |
| Schedule Rating | : | SDR 35 |
- IPEX® Ring-Tite® systems are immune to corrosion from aggressive soils and galvanic action, in addition, H2S and other aggressive chemicals common in sanitary sewage have no effect
- Eliminate infiltration and exfiltration, Ring-Tite® joints easily outperform concrete and corrugated PE joints
- IPEX®'s PVC pipe and fittings are manufactured with smooth inner walls and provide systems with a Manning coefficient of 0.009, allowing for use of smaller diameters of pipe when compared to rough walled pipe
Instruction/Installation Manual
