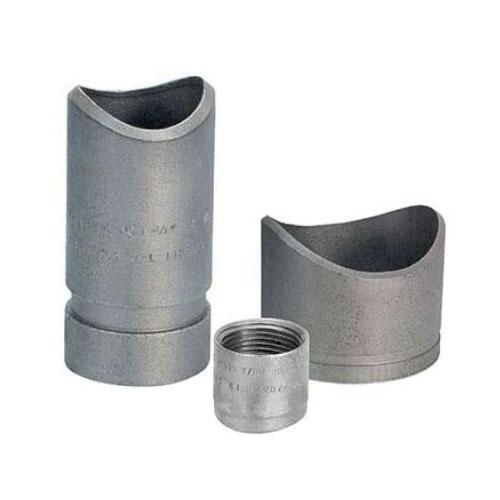

MERIT® Weld-Miser™ Fig MTL Series 0363190869 Tee-Let, 3 in FNPT Branch, 6 in Run, Steel, SCH 40, 300 lb
- Manufacturer: ASC Engineered Solutions
- Brand Name: MERIT®
- Part#: LETLT-3-6
- MPN: 0363190869
- UPC: 690291095603
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Merit® Weld-Miser™ Tee-Let Welding Branch Outlet Fittings offer the user a high strength, low cost, welded steel, threaded and grooved line of fittings. Tee-Lets are specifically designed and manufactured to be installed on Schedules 5 thru 40 and proprietary thin wall flow pipe. Merit® Tee-Lets are steel welding outlet fittings. The material used in manufacture meets the chemical and physical requirements of ASTM A53, Grades A or B, Type E. Tee-Lets employ a low weld volume design to provide for either a partial or full penetration weld employing a single pass with minimum burn-through and pipe distortion. Threads are NPT per ASME B1.20.1 or ISO 7/1 Taper as ordered. Tee-Lets are UL Listed and FM Approved for use conforming to the requirements of NFPA 13. When used in fire sprinkler systems, Tee-Lets are rated for 300 psi or 175 psi on 6 in EZ-Flow Pipe.
MERIT® Weld-Miser™ Tee-Let, Fig MTL Series, Tee-Let Fitting, 3 in Outlet Branch, FNPT Branch Connection, 6 in Run Pipe, Steel, Material Construction: Steel, SCH 40, Pressure Class: 300 lb, 300 psi, 3.068 in ID x 2.5 in H
| Branch Connection Type | : | FNPT |
| Dimensions | : | 3.068 in ID x 2.5 in H |
| Fitting Type | : | Tee-Let |
| Material Construction | : | Steel |
| Material | : | Steel |
| Outlet Branch Size | : | 3 in |
| Pressure Class | : | 300 lb |
| Pressure Rating | : | 300 psi |
| Run Pipe Size | : | 6 in |
| Schedule Rating | : | SCH 40 |
| Series | : | Fig MTL Series |
