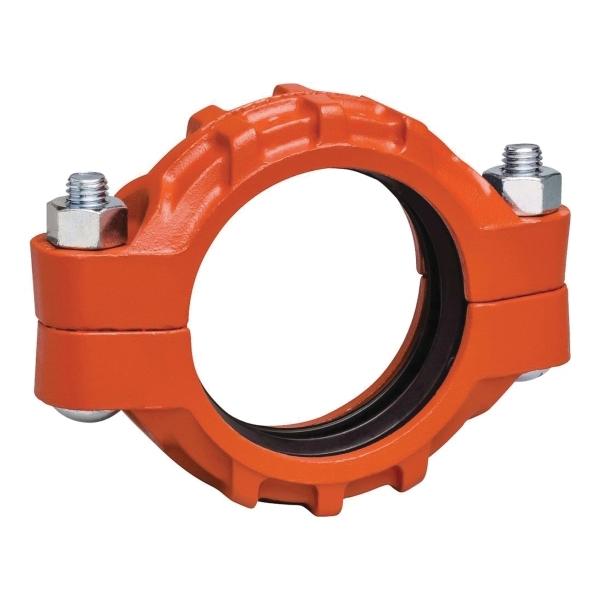

Victaulic® 77 Series L014077PE0 Standard Flexible Coupling, 1-1/2 in Grooved x 1-1/2 in Grooved, Iron
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC77-112
- MPN: L014077PE0
- UPC: 688304454950
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® Standard Flexible Coupling, 77 Series, Coupling Fitting, 1-1/2 in Connection Size 1, Connection Type 1: Grooved, 1-1/2 in Connection Size 2, Connection Type 2: Grooved, Grooved Connection, Iron, Material Construction: Iron, 1000 psi, For Use With: Standard Roll Grooved, Cut Grooved Pipes, Grooved Fittings, Valves and Accessories, 1.9 in ID x 3.13 in OD x 5.38 in W x 1.88 in D, -30 to 230 deg F, Additional Information: Import
| Additional Information | : | Import |
| Connection Size 1 | : | 1-1/2 in |
| Connection Size 2 | : | 1-1/2 in |
| Connection Type 1 | : | Grooved |
| Connection Type 2 | : | Grooved |
| Connection Type | : | Grooved |
| Dimensions | : | 1.9 in ID x 3.13 in OD x 5.38 in W x 1.88 in D |
| Fitting Type | : | Coupling |
| For Use With | : | Standard Roll Grooved, Cut Grooved Pipes, Grooved Fittings, Valves and Accessories |
| Material Construction | : | Iron |
| Material | : | Iron |
| Pressure Rating | : | 1000 psi |
| Series | : | 77 Series |
| Temperature Rating | : | -30 to 230 deg F |
- Cross ribbed, two piece housing construction
- Joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves and accessories
- Provides a flexible pipe joint which allows for expansion, contraction and deflection
- Exclusively for use with pipe and Victaulic® products which feature ends formed with the Victaulic® OGS groove profile
