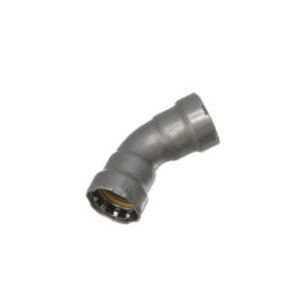

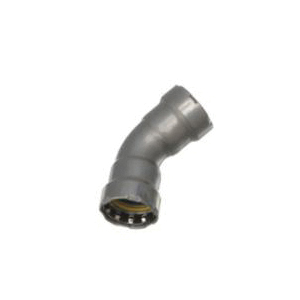

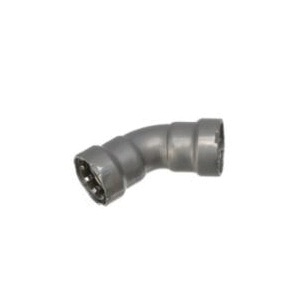

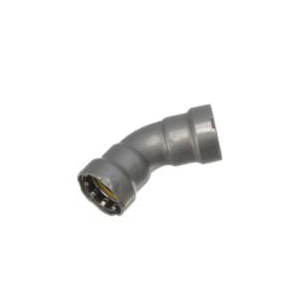

Viega MegaPressG® 6626 Series 25246 45 deg Elbow, 1-1/4 in Press x 1-1/4 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: MPG210-114
- MPN: 25246
- UPC: 691514252469
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Viega MegaPressG® with an HNBR sealing element is the first press fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPressG® is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG® joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered press tool. Not approved for use with potable water.
Viega 45 deg Elbow, 6626 Series, 45 deg Elbow Fitting, Connection Size 1: 1-1/4 in, Connection Type 1: Press, Connection Size 2: 1-1/4 in, Connection Type 2: Press, Press|Press Connection, Steel, Material Construction: Carbon Steel, Finish: Zinc Nickel-Coated, For Use With: SCH 5 to 40 Carbon Steel Pipes, 5.54 in L x 3.85 in W x 2.21 in H, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 1-1/4 in |
| Connection Size 2 | : | 1-1/4 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Dimensions | : | 5.54 in L x 3.85 in W x 2.21 in H |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | 45 deg Elbow |
| For Use With | : | SCH 5 to 40 Carbon Steel Pipes |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6626 Series |
| Temperature Rating | : | -40 to 180 deg F |
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
- Allows identification of an unpressed fitting during pressure testing
- Corrosion-resistant zinc nickel coating
- The same hanger and support requirements as threaded systems
Instruction/Installation Manual
