Webstone 4044 Series 40443WPR Service Valve Kit, 3/4 in, IPS Union x IPS, 600 lbf/sq-in, Brass
- Manufacturer: NIBCO Inc
- Brand Name: Webstone
- Part#: WBS40443WPR
- MPN: 40443WPR
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Webstone Service Valve Kit, 4044 Series, 3/4 in Nominal, IPS Union x IPS Connection, 600 lbf/sq-in, 200000 Btu/hr Nominal Capacity, T-Handle Actuator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Trim, Brass Packing, Stainless Steel Handle, 4-15/16 in H
| Actuator Type | : | T-Handle |
| Body Material | : | Brass |
| Connection Type | : | IPS Union x IPS |
| Dimensions | : | 4-15/16 in H |
| Handle Material | : | Stainless Steel |
| Nominal Capacity | : | 200000 Btu/hr |
| Nominal Size | : | 3/4 in |
| Packing Material | : | Brass |
| Pressure Rating | : | 600 lbf/sq-in |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Series | : | 4044 Series |
| Stem Material | : | Brass |
| Trim Material | : | Brass |

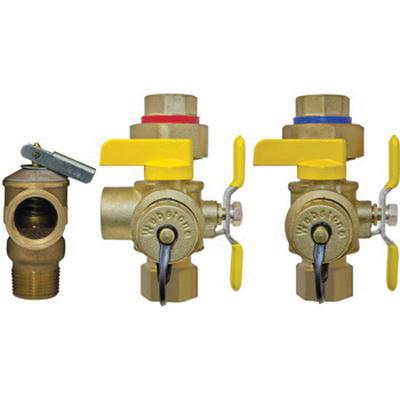

- Hot and cold set of full port forged brass ball valves with high-flow drains and pressure relief valve outlet and adjustable packing gland
- Stainless steel handle nut, wing-style T-handle, lock washer,
- ABS colored insulator ring
- Vinyl handle jacket
- Brass end cap, union nut, union fitting, drain valve handle screw, retaining nut
- EPDM union washer
- Enamel-coated aluminum drain valve handle
- Brass with EPDM hose washer and strap cap and screw
- PTFE retaining seats
