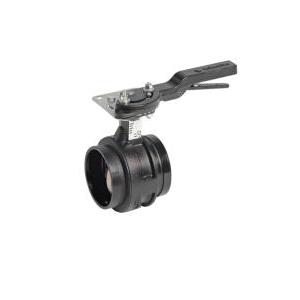

Victaulic® VIC-300™ 761 Series 761S2-8 Butterfly Valve, 8 in, Grooved, Ductile Iron, 300 psi
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC761S2-8
- MPN: 761S2-8
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
761 Series Butterfly Valve, 8 in, Grooved, Ductile Iron, 300 psi
| Actuator Type | : | Lever Lock Handle |
| Body Material | : | Ductile Iron |
| Connection Type | : | Grooved |
| Dimensions | : | 8-5/8 in OD |
| Disc Material | : | Ductile Iron |
| Flow Coefficient (Cv) | : | 3400 Cv |
| Handle Material | : | Ductile Iron |
| Inlet to Outlet Length | : | 5.33 in |
| Material Standard | : | ASTM A536, B733, A351, A582, A564, A564 |
| Media | : | Water |
| Mounting Type | : | Flange |
| Nominal Size | : | 8 in |
| Pressure Rating | : | 300 psi |
| Seal Material | : | EPDM |
| Seat Material | : | EPDM |
| Series | : | 761 Series |
| Stem Material | : | Stainless steel |
- Designed for bidirectional, dead end services to full working pressure
