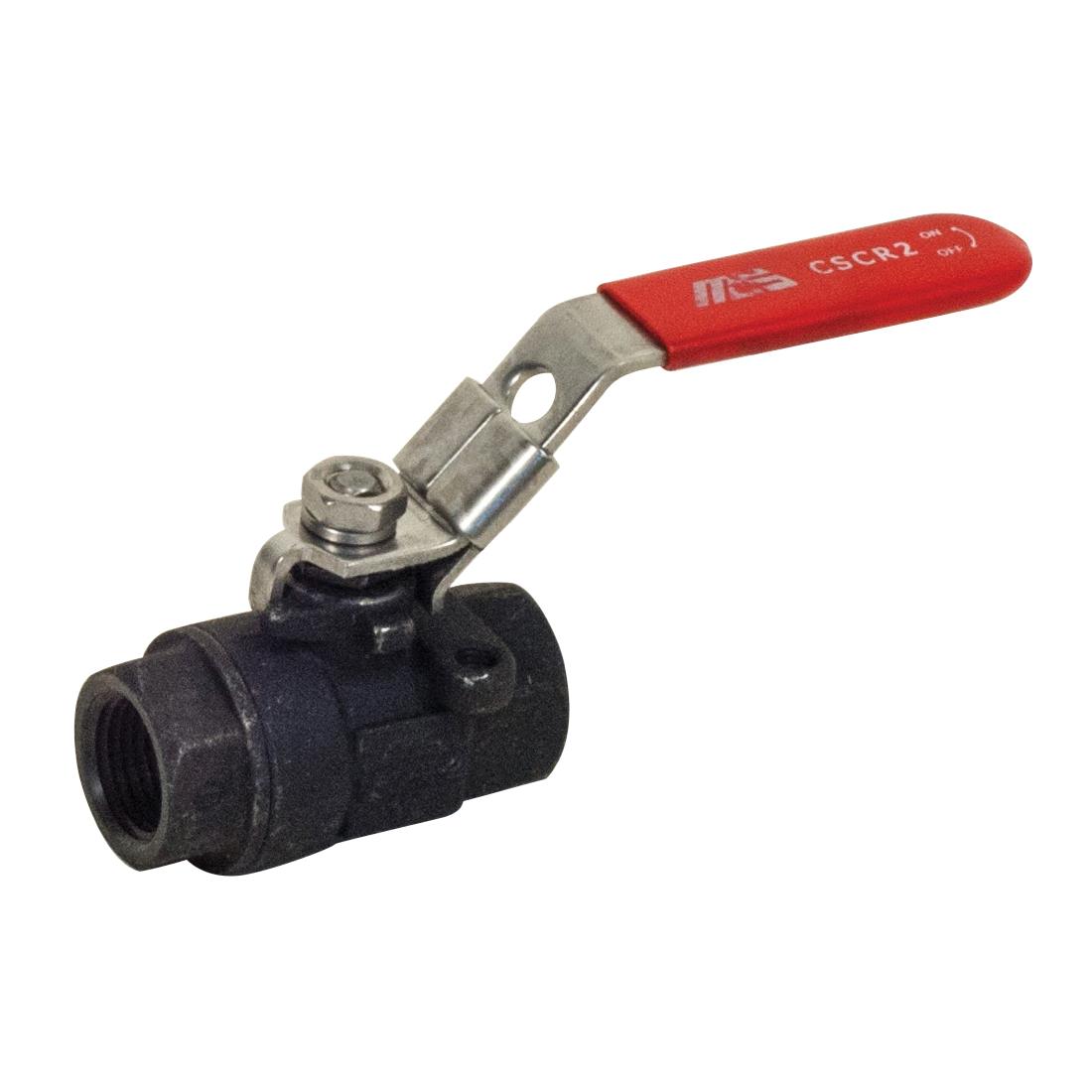

MAS™ C Series 014-15140 Ball Valve, 2 in, NPT, Carbon Steel, 2000 psi
- Manufacturer: M.A. Stewart & Sons Ltd
- Brand Name: MAS™
- Part#: MASCSCR-2-2
- MPN: 014-15140
- UPC: 620830200267
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
MAS C-Series Carbon Steel
MAS™ Ball Valve, C Series, 2 in Nominal, NPT Connection, Large Port, 2000 psi, Gas, Oil, Water Media, 5.394 in Inlet to Outlet Length, 4.213 in Top to Inlet Center, 1.496 in Opening, Locking Lever Handle Operator, 108 Cv Flow Coefficient (Cv), Material Standard: ASTM A216 Grade WCB, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, PTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, RPTFE Softgoods, Additional Information: Two-Piece, Carbon Steel Gland Nut
| Additional Information | : | Two-Piece, Carbon Steel Gland Nut |
| Ball Material | : | Stainless Steel |
| Body Material | : | Carbon Steel |
| Connection Type | : | NPT |
| Flow Coefficient (Cv) | : | 108 Cv |
| Handle Material | : | 304 Stainless Steel |
| Inlet to Outlet Length | : | 5.394 in |
| Material Standard | : | ASTM A216 Grade WCB |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 2 in |
| Opening Size | : | 1.496 in |
| Operator Type | : | Locking Lever Handle |
| Packing Material | : | PTFE |
| Port Type | : | Large |
| Pressure Rating | : | 2000 psi |
| Seat Material | : | RPTFE |
| Series | : | C Series |
| Softgoods Material | : | RPTFE |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 4.213 in |
- Large port
- Locking lever handle
- NPT ends
- Two piece body
- Blowout-proof stem
- Adjustable packing gland
- Actuator mounting pad
- 2000 p.s.i, W.O.G
- Optional; Model LSSR2 (LCC body/cap) for -50degF/-46degC service is available
Specification Sheet
