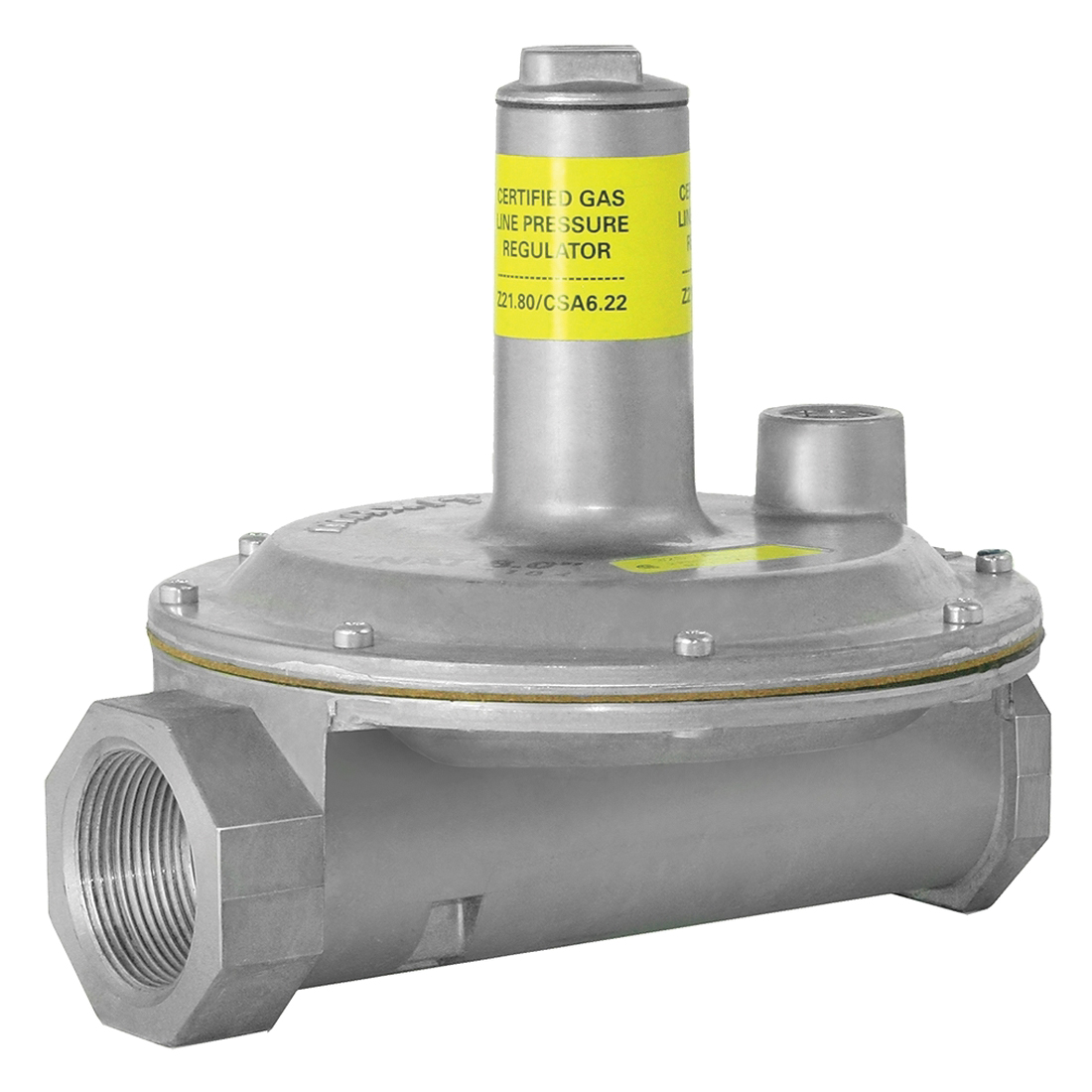

NMT™ MXT-325-5L.1 Line Pressure Regulator, 1 in Nominal, NPT, 2 psi, -40 to 205 deg F, Aluminum Body
- Manufacturer: Norgas Meter Technologies
- Brand Name: NMT™
- Part#: NRGMXT-325-5L.1
- MPN: MXT-325-5L.1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Maxitrol's 325-L Series line pressure regulators are for 2 psi piping systems. 325 series regulators are used for residential, commercial, and industrial applications. The 325 series features a high leverage linkage assembly to deliver positive dead-end lockup. The regulators are capable of precise regulation from full flow down to pilot flow.
NMT™ Line Pressure Regulator, 325-L Series, 1 in Nominal, NPT Connection, 2 psi, 5.9 in Inlet to Outlet Length, Aluminum Body, -40 to 205 deg F, 5.3 in L, 600000 Btu/hr BTU Rating, 3/8 in NPT Vent Connection
| Additional Information | : | 600000 Btu/hr BTU Rating, 3/8 in NPT Vent Connection |
| Body Material | : | Aluminum |
| Connection Type | : | NPT |
| Dimensions | : | 5.3 in L |
| Inlet to Outlet Length | : | 5.9 in |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 2 psi |
| Series | : | 325-L Series |
| Temperature Rating | : | -40 to 205 deg F |
