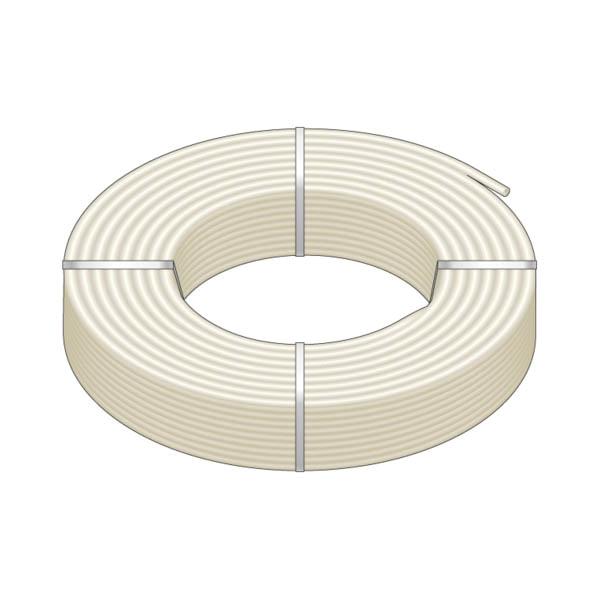

HeatLink® 94135 Tubing With Oxygen Barrier, 1-1/4 in, 100 ft Coil L, Polyethylene, 0.153 in Thick Wall, 1.054 in ID
- Manufacturer: HeatLink Group
- Brand Name: HeatLink®
- Part#: HTL94135
- MPN: 94135
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
HeatLink® Tubing With Oxygen Barrier, 1-1/4 in Nominal, 1.054 in Inside Diameter, 1-3/8 in Outside Diameter, 100 ft Coil Length, Polyethylene, Material Construction: Cross-Linked Polyethylene, 7-1/2 in Bend Radius, 0.153 in Wall Thickness, 180 psi Working Pressure, Resistance Properties: Abrasion, Chemical, Heat, UV, 20 to 26 N/sq-mm Tensile Strength, 200 deg F
| Bend Radius | : | 7-1/2 in |
| Inside Diameter | : | 1.054 in |
| Length | : | 100 ft Coil |
| Material Construction | : | Cross-Linked Polyethylene |
| Material | : | Polyethylene |
| Nominal Size | : | 1-1/4 in |
| Outside Diameter | : | 1-3/8 in |
| Resistance Properties | : | Abrasion, Chemical, Heat, UV |
| Temperature Rating | : | 200 deg F |
| Tensile Strength | : | 20 to 26 N/sq-mm |
| Wall Thickness | : | 0.153 in |
| Working Pressure | : | 180 psi |
- High molecular cross-linked polyethylene (PEX-a) with minimum bending radii of 6x the diameter at 68 deg F (20 deg C). Maximum operating temperature: 180 deg F @ 100 PSI (82 deg C @ 690 kPa). Covered by a twenty-five year manufacturer's limited warranty. Comes with oxygen diffusion barrier which prevents oxygen from entering the heating system through the tubing wall.
- Flexible - easy installations
- UV stabilized
- Resists scaling and corrosion
- Freeze and chemical resistance
Specification Sheet
