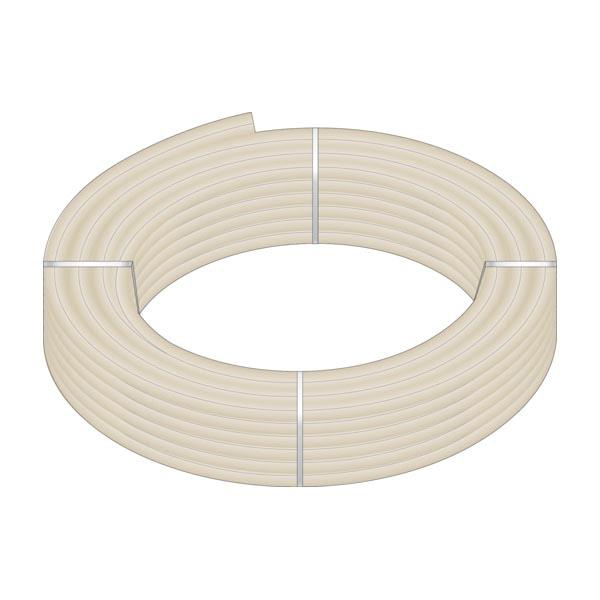

HeatLink® PureLink® Plus 20135 PEX-a Tubing, 1-1/4 in, 100 ft L, Polyethylene, 0.153 in Thick Wall, 1.054 in ID
- Manufacturer: HeatLink Group
- Brand Name: HeatLink®
- Part#: HTL20135
- MPN: 20135
- UPC: 627998009268
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
High molecular crosslinked polyethylene (PEX) with minimum bending radius of 6X the diameter at 68 deg F. Maximum operating temperature 180 deg F at 100 psi. Black printing so tubing can be used for cold or hot water lines. The PureLink® plus PEX-a tubing may be used with fittings that are compliant with ASTM F1807/F1960/F2080 standards.
HeatLink® PureLink® Plus PEX-a Tubing, 1-1/4 in Nominal, 1.054 in Inside Diameter, 1-3/8 in Outside Diameter, 100 ft Length, Polyethylene, Material Construction: Polyethylene, 7-1/2 in Bend Radius, 0.153 in Wall Thickness, 100 psi Working Pressure, 180 deg F
| Bend Radius | : | 7-1/2 in |
| Inside Diameter | : | 1.054 in |
| Length | : | 100 ft |
| Material Construction | : | Polyethylene |
| Material | : | Polyethylene |
| Nominal Size | : | 1-1/4 in |
| Outside Diameter | : | 1-3/8 in |
| Temperature Rating | : | 180 deg F |
| Wall Thickness | : | 0.153 in |
| Working Pressure | : | 100 psi |
- Flexible - easy installations
- UV stabilized
- Resists scaling and corrosion
- Freeze and chemical resistance
Instruction/Installation Manual
