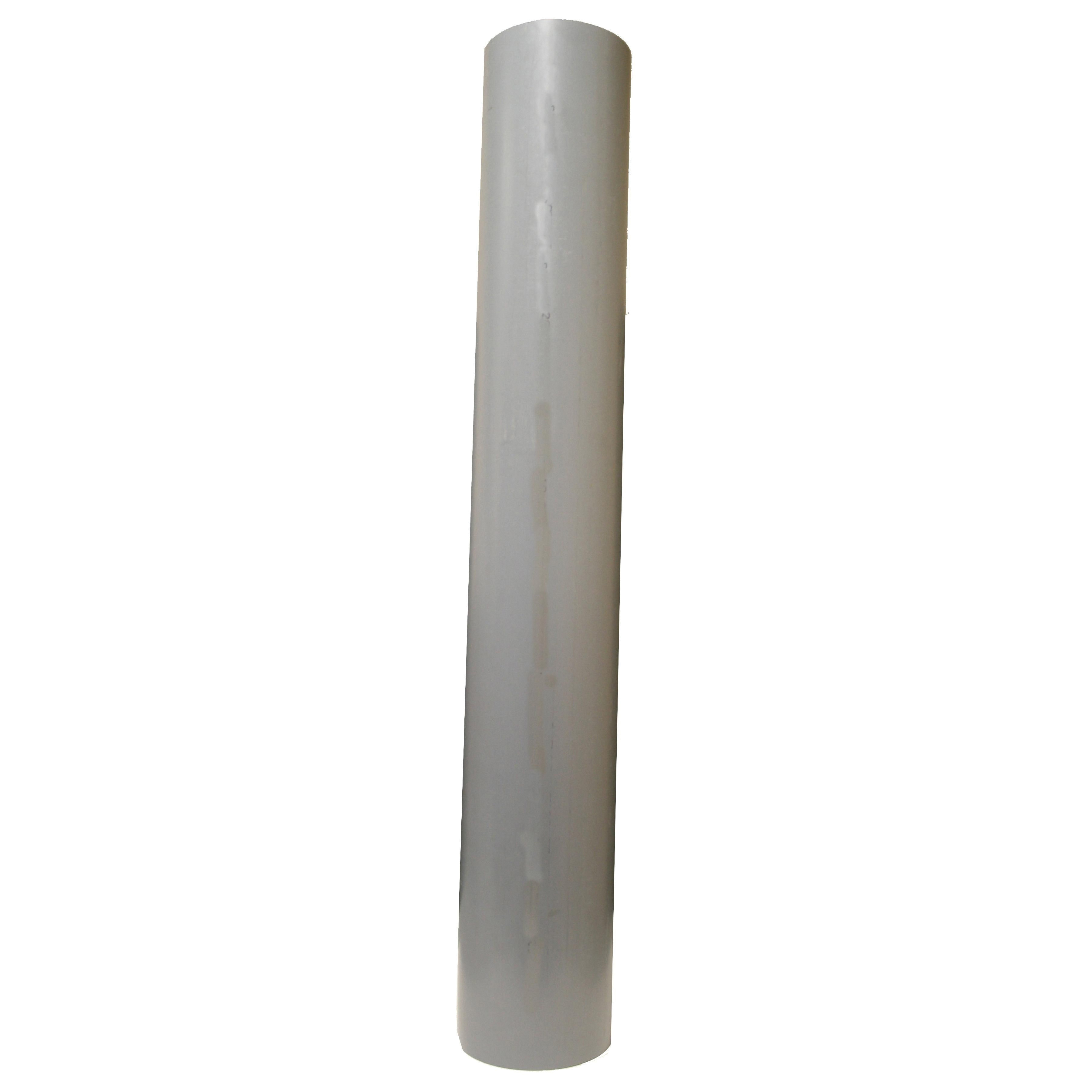

Xirtec® 019217 Pipe, 3 in Nominal Pipe, Plain End, 2.864 in ID, 20 ft, SCH 80, CPVC
- Manufacturer: Aliaxis Group SA
- Brand Name: Xirtec®
- Part#: CPPSCH8020-3
- MPN: 019217
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Xirtec CPVC high-performance process piping systems are an excellent alternative to common and exotic metal chemical-waste systems. They feature a superior temperature range and resistance to photodegradation, creep stress and oxidation, making them ideal for chemical and industrial applications with the use of acids, alcohols, salts and halogens. Xirtec CPVC has proved to be an excellent piping system for hot corrosive liquids, hot and cold water distribution and similar applications. This Xirtec CPVC Schedule 80 Plain End Pipe comes in a 20' length and is available in pipe sizes from 1/2" to 6" IPS. It is joined by solvent cementing, threading, flanging or grooved joints. NSF listed.
Xirtec® Pipe, 3 in Nominal Pipe, Plain End Connection, 2.864 in Inside Diameter, 20 ft Length, 0.3 in Wall Thickness, 370 psi, SCH 80, Material Standard: ASTM F441, CPVC, 73 deg F, Domestic/Import: Domestic
| Connection Type | : | Plain End |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 2.864 in |
| Length | : | 20 ft |
| Material Standard | : | ASTM F441 |
| Material | : | CPVC |
| Nominal Pipe Size | : | 3 in |
| Pressure Rating | : | 370 psi |
| Schedule Rating | : | SCH 80 |
| Temperature Rating | : | 73 deg F |
| Wall Thickness | : | 0.3 in |
- Xirtec CPVC Schedule 80 pipe with plain end
- 20' length
- 1/2" to 6" IPS
- Made from high-performance vinyl
- Ideal for high-pressure applications
- Exceptional temperature range
- Resistant to photodegredation, creep stress and oxidation
- Suited for use with halogens, salts, acids, and alcohols
- Extended life and superior underground performance
- Low-maintenance alternative to common and exotic metal systems
- NSF listed
