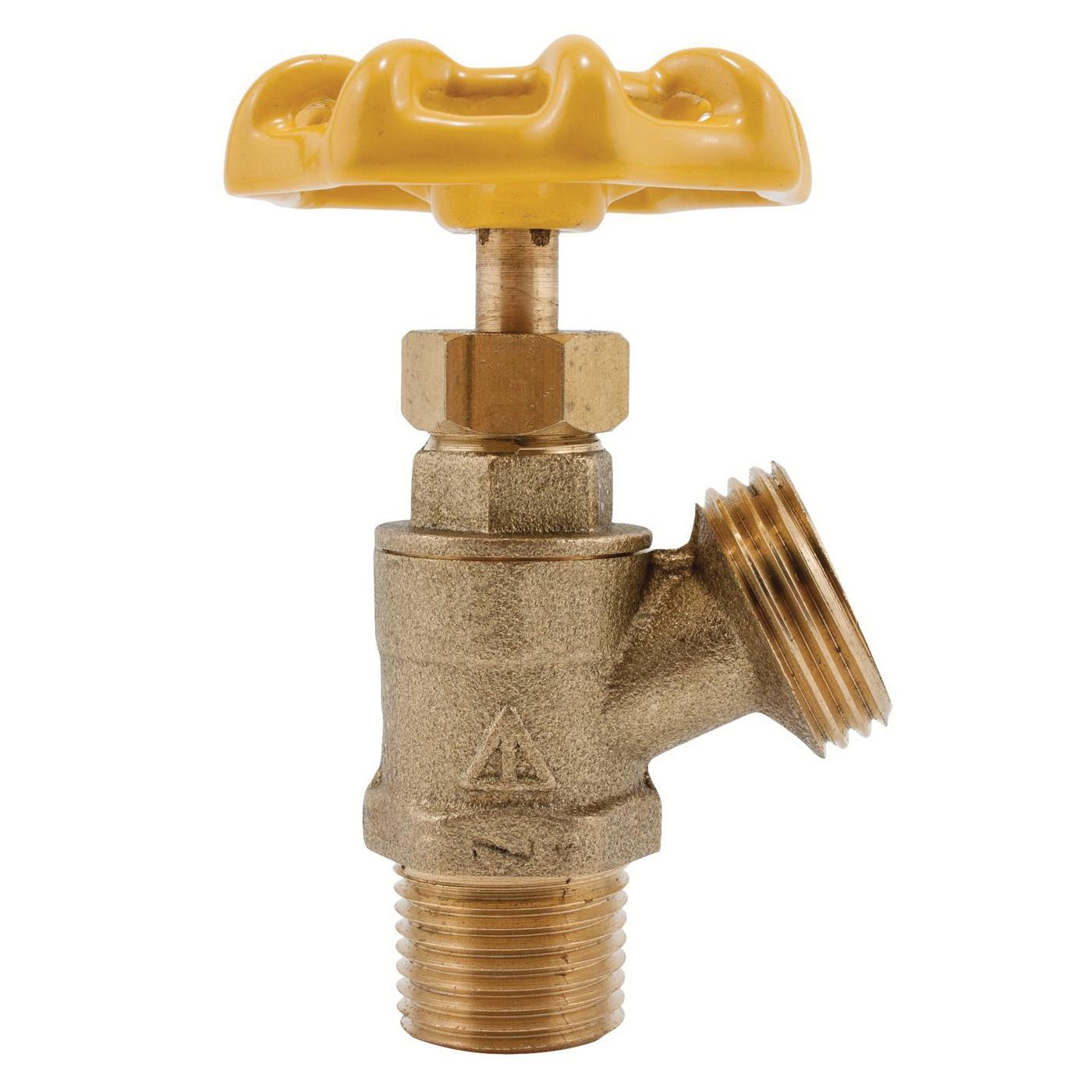

WATTS® BD Series BD-1C Boiler Drain Shut-Off Valve, 1/2 x 3/4 in, Male IPS x Hose Thread, 200 psi, 180 deg F, Brass
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WTSBD1C
- MPN: BD-1C
- UPC: 098268260441
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This 1/2 in angle pattern brass boiler drain shut-off is designed for water service use in commercial and residential hydronic heating systems. It provides positive shut-off for boiler drain or sill cock applications. This shut-off consists of a brass body construction and 1/2 in dual connection for either solder or male ips and 3/4 in hose thread connection, PTFE stem packing and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 180 deg F (82 deg C).
WATTS® Boiler Drain Shut-Off Valve, BD Series, 1/2 x 3/4 in Nominal, Male IPS x Hose Thread Connection, 200 psi, Gas, Oil, Water Media, Brass Body, PTFE Stem, 180 deg F, 3-1/2 in
| Body Material | : | Brass |
| Connection Type | : | Male IPS x Hose Thread |
| Dimensions | : | 3-1/2 in |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 1/2 x 3/4 in |
| Pressure Rating | : | 200 psi |
| Series | : | BD Series |
| Stem Material | : | PTFE |
| Temperature Rating | : | 180 deg F |
- Hose thread outlet
- Dual inlet connection
- Angle pattern
Specification Sheet
