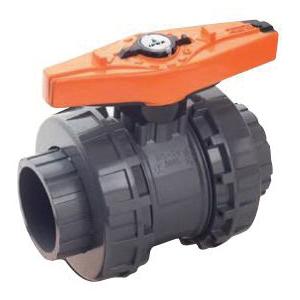

IPEX® VXE Series 353017 Ball Valve, 3 in, FNPT, PVC, 150 psi
- Manufacturer: IPEX®
- Brand Name: IPEX®
- Part#: PVCVXFV2-3
- MPN: 353017
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
IPEX® TKD Series three way ball valves can be used for flow diverting, mixing or on/off isolation. They will replace a tee + two valve linkage assembly at reduced cost and space, along with shorter installation and maintenance time. The patented seat stop carrier allows for in line micro adjustment of the ball seating and features O-ring cushioning to minimize wear and prevent seizing. The TKD also includes our patented dual Block® locking union nut system, which ensures the nuts are held in position even under severe service conditions such as high-vibration or thermal expansion. Integral mounting flange and bracketing allows for direct actuation and simple support, while a locking handle can prevent improper positioning. TKD Series three way ball valves are part of our complete Xirtec® PVC systems of pipe, valves and fittings, engineered and manufactured to our strict quality, performance and dimensional standards.
IPEX® Ball Valve, VXE Series, 3 in Nominal, FNPT Connection, Full Port, 150 psi, 9.76 in Inlet to Outlet Length, 5.95 in Top to Inlet Center, 487.2 Cv Flow Coefficient (Cv), Material Standard: ASTM D2464, ASTM F1498, PVC Body, PTFE Seat, PVC Stem, EPDM Seal, PVC Handle, PVC Ball, Dark Gray, 73 deg F
| Ball Material | : | PVC |
| Body Material | : | PVC |
| Color | : | Dark Gray |
| Connection Type | : | FNPT |
| Flow Coefficient (Cv) | : | 487.2 Cv |
| Handle Material | : | PVC |
| Inlet to Outlet Length | : | 9.76 in |
| Material Standard | : | ASTM D2464, ASTM F1498 |
| Nominal Size | : | 3 in |
| Port Type | : | Full |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Series | : | VXE Series |
| Stem Material | : | PVC |
| Temperature Rating | : | 73 deg F |
| Top to Inlet Center | : | 5.95 in |
- The valve shall be double blocking with union ends
- All sizes shall allow for bi-directional flow
- The valve body shall be single end entry with a threaded carrier ball seat support
- The valve body shall have an expansion and contraction compensating groove on the molded end
- The valve body, union nuts and carrier shall have deep square style threads for increased strength
- The ball shall be machined smooth to minimize wear on valve seats
- The stem design shall feature a shear point above the O-ring to maintain system integrity in the unlikely event of a stem breakage
- The handle shall incorporate a tool for adjustment of the threaded carrier
- The handle shall incorporate a tool for adjustment of union nuts
- The handle shall incorporate a transparent PVC plug and tag holder for valve identification
