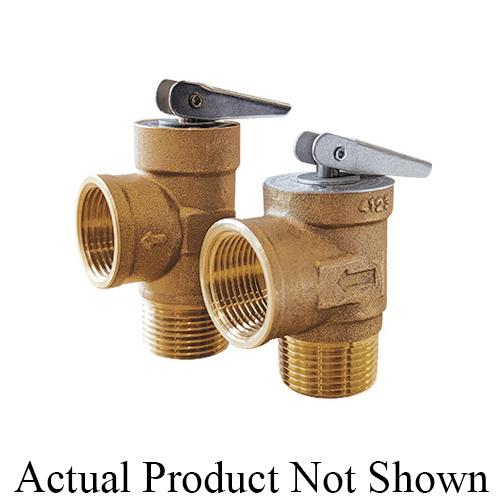

Calefactio PRV075-150 Pressure Relief Valve, 3/4 in Nominal, MNPT, 150 psi, 210 deg F, Brass Body
- Manufacturer: Calefactio
- Brand Name: Calefactio
- Part#: CLFPRV075-150
- MPN: PRV075-150
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Calefactio's overpressure valves represent the last barrier against excessive pressure in the heating system. Their compact brass design makes them a wise choice for a wide range of applications.
Calefactio Pressure Relief Valve, 3/4 in Nominal, MNPT Connection, 150 psi Pressure, Media: Water, Brass Body, 210 deg F, Dimensions: 2.6 in H x 2.6 in W, Domestic/Import: Domestic, Additional Information: 200000 Btu/hr Maximum Heater Input, Lead-Free
| Additional Information | : | 200000 Btu/hr Maximum Heater Input, Lead-Free |
| Body Material | : | Brass |
| Connection Type | : | MNPT |
| Dimensions | : | 2.6 in H x 2.6 in W |
| Domestic/Import | : | Domestic |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Temperature Rating | : | 210 deg F |
- Reliable and compact
- Protection against overpressure
- Prevents damage
- Increased safety
- Brass construction
- Threads inlet conforms to ANSI B1.20.1
Specification Sheet
