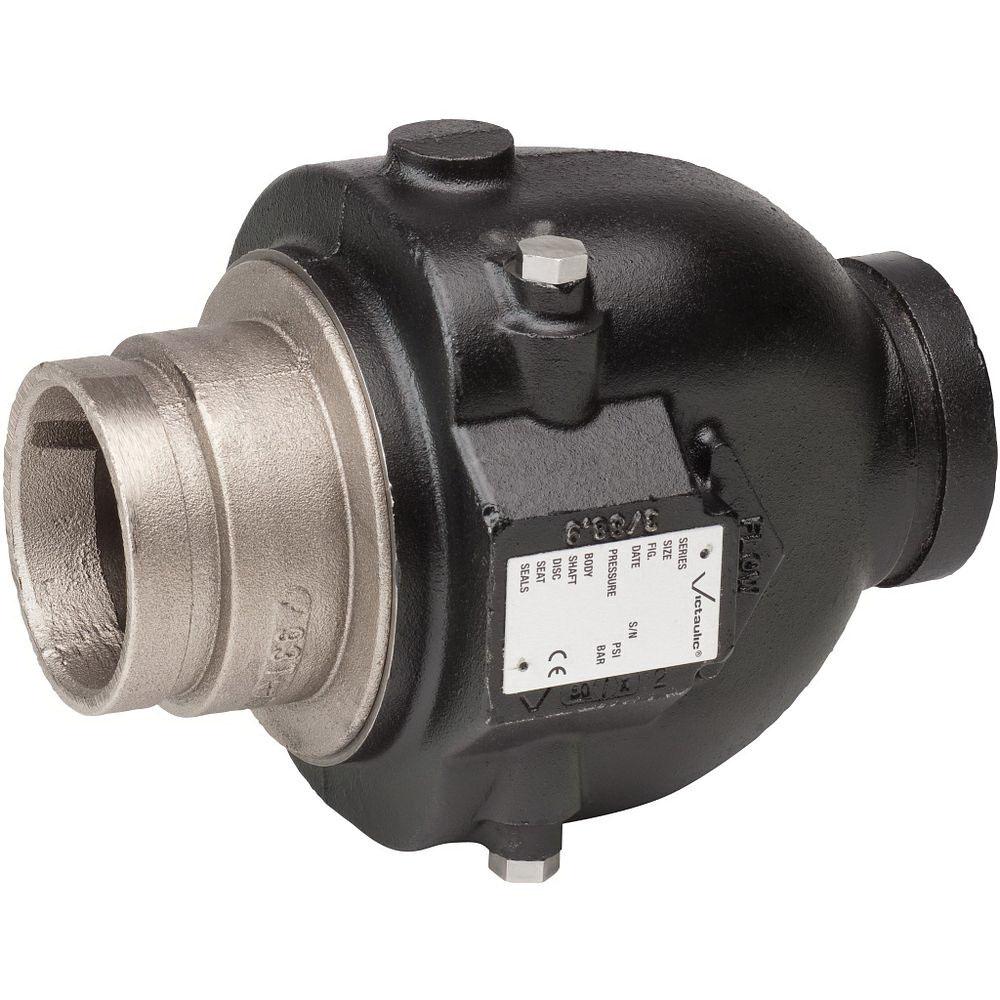

Victaulic® FireLock™ Series 717 V100717PE0 Check Valve, 10 in Nominal, 365 psi, Ductile Iron Body, Painted
- Manufacturer: Victaulic Company
- Brand Name: Victaulic®
- Part#: VIC717-10
- MPN: V100717PE0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Victaulic® FireLock™ Check Valve, Series 717, 10 in Nominal, Grooved End, 365 psi, 3000 Cv Flow Coefficient (Cv), Material Standard: ASTM A536, Grade 65-45-12, Ductile Iron Body, Ductile Iron Seat, EPDM Seal, Elastomer Disc, Black, Finish: Painted, 17 in L x 12 in W
| Body Material | : | Ductile Iron |
| Color | : | Black |
| Dimensions | : | 17 in L x 12 in W |
| Disc Material | : | Elastomer |
| End Type | : | Grooved |
| Finish | : | Painted |
| Flow Coefficient (Cv) | : | 3000 Cv |
| Material Standard | : | ASTM A536, Grade 65-45-12 |
| Nominal Size | : | 10 in |
| Pressure Rating | : | 365 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Ductile Iron |
| Series | : | Series 717 |
- Designed for use in fire protection systems
- Prevents back flow
- Single disc mechanism incorporates a spring assisted feature for non-slamming operation
- Can be installed either vertically (flow upwards only) or horizontally
- Valve body cast with arrow indicator to assist with proper valve orientation
- Rated for ambient temperature use in fire protection systems
