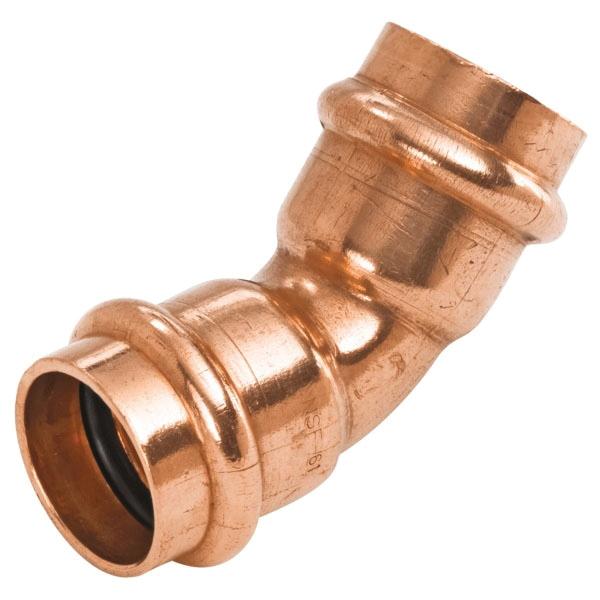

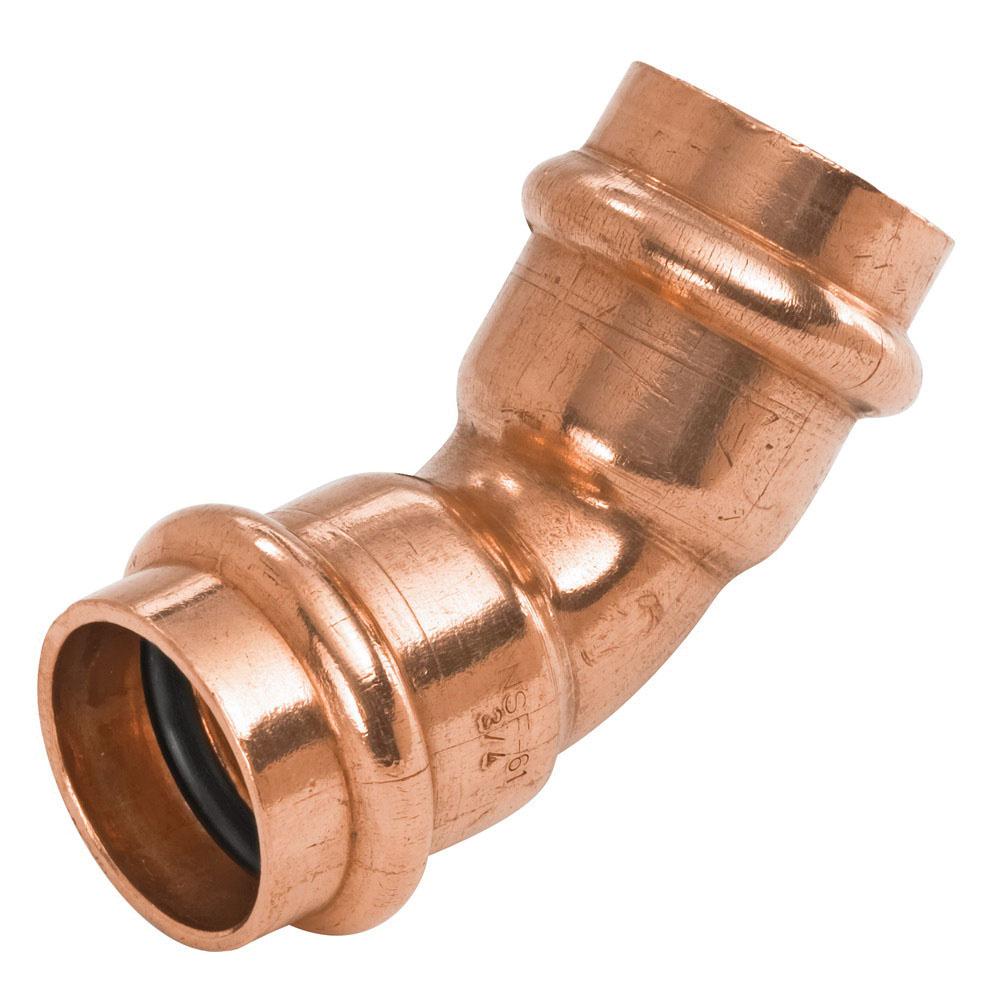

NIBCO® PC606 Series 9043000PC 45 deg Elbow, 1 in Press x 1 in Press, Copper
- Manufacturer: NIBCO Inc
- Brand Name: NIBCO®
- Part#: CPRPC606-1
- MPN: 9043000PC
- UPC: 039923307774
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Nibco Press System copper 45 deg elbow features an inboard bead and EPDM o-ring. Simply applying pressure from a pressing tool tightens the o-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 45 deg. Nibco Press System fittings are the fastest, easiest way to join copper tubing systems. Nibco Press System fittings are designed to join with seamless copper water tube in residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground. The Nibco Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible.
NIBCO® 45 deg Elbow, Series: PC606 Series, 45 deg Elbow Fitting, 1 in Connection Size 1, Press Connection Type 1, 1 in Connection Size 2, Press Connection Type 2, Press|Press Connection, Copper, Wrot Copper Material Construction, 200 psi, -20 to 250 deg F
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Fitting Type | : | 45 deg Elbow |
| Material Construction | : | Wrot Copper |
| Material | : | Copper |
| Pressure Rating | : | 200 psi |
| Series | : | PC606 Series |
| Temperature Rating | : | -20 to 250 deg F |
- Dezincification-resistant
- Quick and easy to install
- Flameless
- Nibco press system, a watertight joint is formed between the EPDM seal and the crimped fitting or valve providing a permanent connection
- 50 years limited warranty
- 1/8 bend
