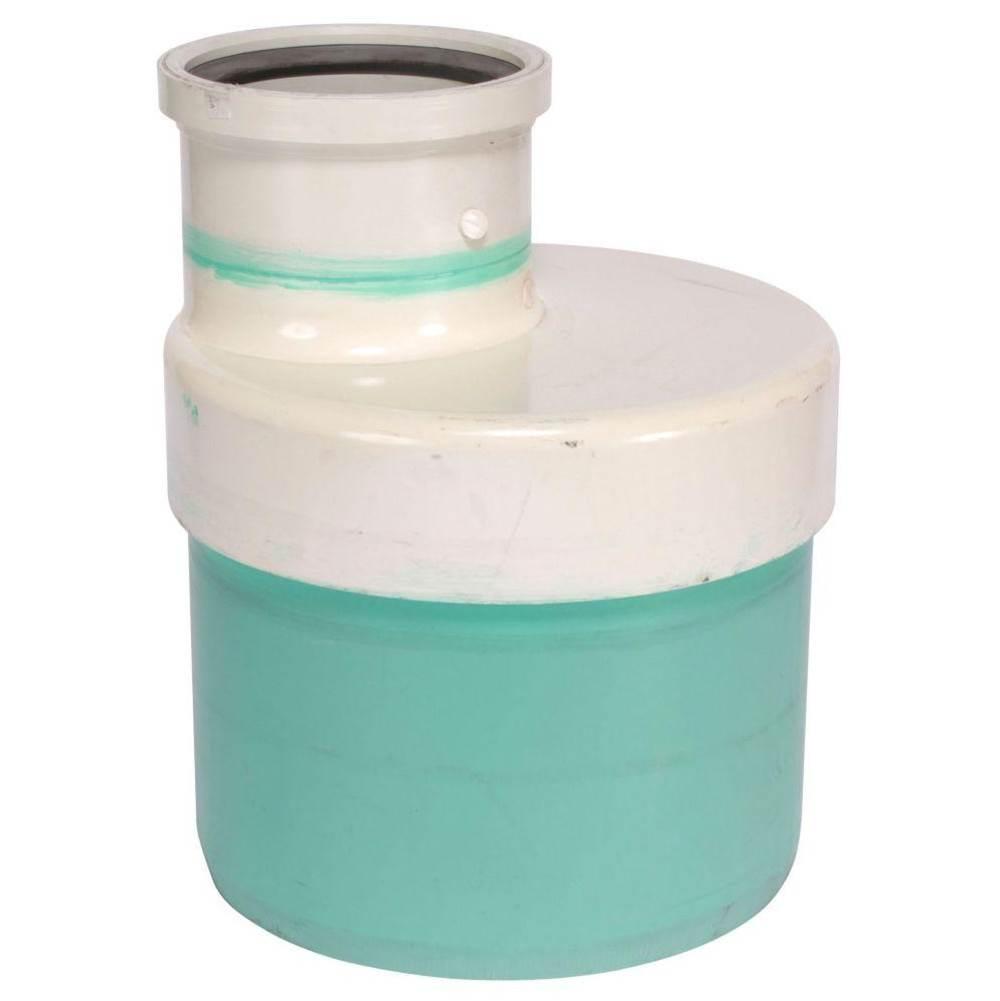

Ring-Tite® 043274 Eccentric Increaser, 12 in Spigot x 10 in Gasketed, PVC, Green, SDR 35
- Manufacturer: Aliaxis Group SA
- Brand Name: Ring-Tite®
- Part#: SGF480-300-250
- MPN: 043274
- UPC: 622454432741
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Ring-Tite® and Enviro-Tite piping systems are DR35 and DR28 sewer pipes manufactured to demanding ASTM and CSA standards. The two products are identical except for Enviro-Tite having a minimum recycled material content of 50%. Both products have tight joints that can withstand well in excess of both the ASTM and CSA requirements.
Ring-Tite® Eccentric Increaser, Increaser Fitting, 12 in Connection Size 1, Connection Type 1: Spigot, 10 in Connection Size 2, Connection Type 2: Gasketed, Spigot|Gasket Connection, PVC, Material Construction: PVC, Green, SDR 35, Dimension Standards: ASTM D3034, 11.79 in ID x 12.5 in OD x 0.36 in THK
| Color | : | Green |
| Connection Size 1 | : | 12 in |
| Connection Size 2 | : | 10 in |
| Connection Type 1 | : | Spigot |
| Connection Type 2 | : | Gasketed |
| Connection Type | : | Spigot|Gasket |
| Dimension Standards | : | ASTM D3034 |
| Dimensions | : | 11.79 in ID x 12.5 in OD x 0.36 in THK |
| Fitting Type | : | Increaser |
| Material Construction | : | PVC |
| Material | : | PVC |
| Schedule Rating | : | SDR 35 |
- IPEX® Ring-Tite® systems are immune to corrosion from aggressive soils and galvanic action, in addition, H2S and other aggressive chemicals common in sanitary sewage have no effect
- Eliminate infiltration and exfiltration, Ring-Tite® joints easily outperform concrete and corrugated PE joints
- IPEX®'s PVC pipe and fittings are manufactured with smooth inner walls and provide systems with a Manning coefficient of 0.009, allowing for use of smaller diameters of pipe when compared to rough walled pipe
Instruction/Installation Manual
