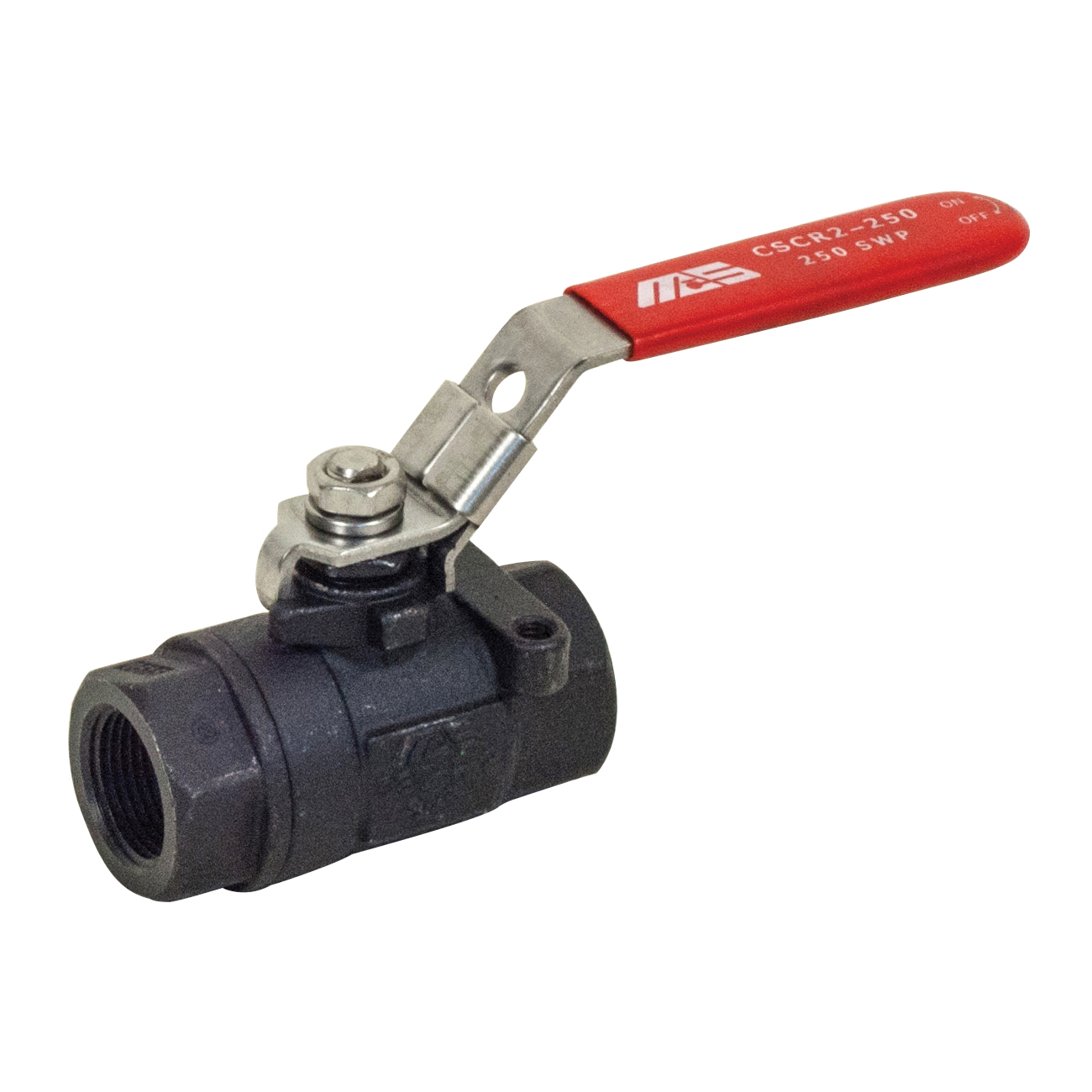

MAS™ C Series 014-15298 Ball Valve, 3/4 in, NPT, Carbon Steel, 2000 psi
- Manufacturer: M.A. Stewart & Sons Ltd
- Brand Name: MAS™
- Part#: MASCSCR2-250-34
- MPN: 014-15298
- UPC: 620830035074
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
MAS C-Series Carbon Steel
MAS™ Ball Valve, C Series, 3/4 in Nominal, NPT Connection, Large Port, 2000 psi, Gas, Oil, Water Media, 3.13 in Inlet to Outlet Length, 2.58 in Top to Inlet Center, 0.689 in Opening, Locking Lever Handle Operator, 30 Cv Flow Coefficient (Cv), Material Standard: ASTM A216 Grade WCB, Carbon Steel Body, RPTFE Seat, 316 Stainless Steel Stem, RPTFE Packing, 304 Stainless Steel Handle, Stainless Steel Ball, RPTFE Softgoods, Additional Information: Two-Piece, Carbon Steel Gland Nut
| Additional Information | : | Two-Piece, Carbon Steel Gland Nut |
| Ball Material | : | Stainless Steel |
| Body Material | : | Carbon Steel |
| Connection Type | : | NPT |
| Flow Coefficient (Cv) | : | 30 Cv |
| Handle Material | : | 304 Stainless Steel |
| Inlet to Outlet Length | : | 3.13 in |
| Material Standard | : | ASTM A216 Grade WCB |
| Media | : | Gas, Oil, Water |
| Mounting Type | : | Pad |
| Nominal Size | : | 3/4 in |
| Opening Size | : | 0.689 in |
| Operator Type | : | Locking Lever Handle |
| Packing Material | : | RPTFE |
| Port Type | : | Large |
| Pressure Rating | : | 2000 psi |
| Seat Material | : | RPTFE |
| Series | : | C Series |
| Softgoods Material | : | RPTFE |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 2.58 in |
| Trim Material | : | 304 Stainless Steel/Carbon Steel |
- Large port, Two piece body
- NPT threads
- All mounting pads are not tapped, but have reserve holes cast in (except 3/4" and 1" which are dimpled). Recommended tapping sizes are listed for reference only.
- 250 PSIG Steam Trim
- Blowout-proof stem
- Adjustable packing gland
- Locking lever handle
- Actuator mounting pad
- 2000 p.s.i., W.O.G
Specification Sheet
