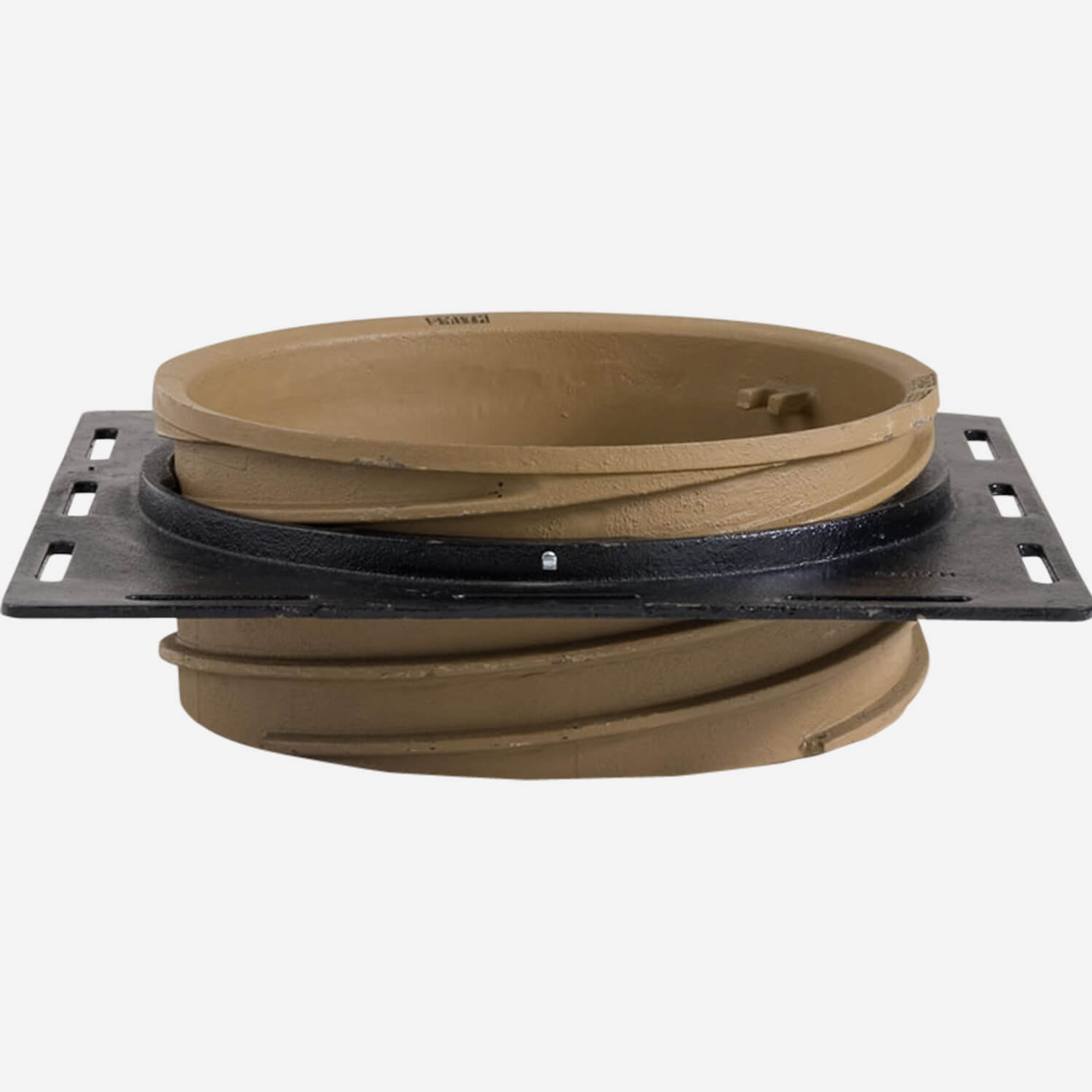

SMITH® 1010 Series 1010Y-06-C-R General Purpose Roof Drain and Low-Profile Dome, Iron/Polyethylene, Duco-Coated

The drain eliminates the need for underdeck clamps and is mounted directly to the top deck, so it can be installed by a single person. Because you no longer need a second installer on the floor below, you remove potential safety hazards associated with climbing and save on installation time. Installed entirely from above deck on flat roofs of any construction, our labor-saving roof drain simplifies installation, saving steps and the need for a second technician. This 15-1/4 in Duco-coated cast iron drain will quickly clear large runoff accumulations. The combined flashing clamp and gravel stop protects drain lines from debris and securely grips flashing and roofing materials without puncturing for a leak-proof installation. The drain is protected by a low-profile, polyethylene dome strainer.

SMITH® General Purpose Roof Drain and Low-Profile Dome, Series: 1010 Series, 6 in, No-Hub, Iron/Polyethylene, Duco-Coated, 15-1/4 in Width

• Roof drains can be pre-assembled to deck plate and placed as one unit from the top roof surface, saving time
• Large roof deck plate is easy-to-install using fasteners from the top of roof only, no underdeck clamp required means less hardware and time savings
• Installation from above means less time on ladders or lifts and less overhead work, the only task after installation is the actual pipe connection, made to a secured assembly
• The drains are installed in a recess to prevent a water dam
• Roof penetrations are square, not round, saving time
