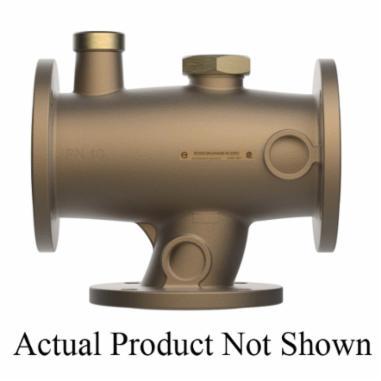

resideo MX131LF MX131LF/U Mixing Valve, 2-1/2 in, Flanged, 10.5 gpm, 154 psi, Bronze/Stainless, Lead-Free

The Braukmann MX series high capacity mixing valve provides accurate control of hot water temperatures based on the mixing of hot and cold water. The valve features a PTFE-coating that increases its product life and reduces the need for callbacks. It also has a tamper evident temperature adjustment and a recirculation port that supports fast responses.

resideo Mixing Valve, Series: MX Series, Model: MX131LF, 2-1/2 in Nominal, Flanged, 10.5 gpm Flow Rate, 154 psi, 34 Cv Flow Coefficient (Cv), Gun Metal Seal, Bronze/Stainless, Metallic, Non-Potable Water, Potable Water Media, Lead-Free, 113 to 149 deg F, 11-13/32 in W

• Dual purpose mixing or diverting valve
• Constant water temperature under different operating conditions
• Proportional valve (control of hot and cold water)
• Flow reduction in seconds if cold water supply is interrupted
• Maintains temperature with extremely low minimum flows
• Temperature adjustable, tamper evident
• Install in any position, heat trapping not required
• Recirculation connection for fast response
• Bronze/stainless construction
• Wear surfaces PTFE-coated to prevent deposit build up
• Tapped flange connections 2-1/2 and 3 in
• Allen wrench for temperature adjustment included
