HeatLink® 23722NL HTL23722NL
  1. pin-int

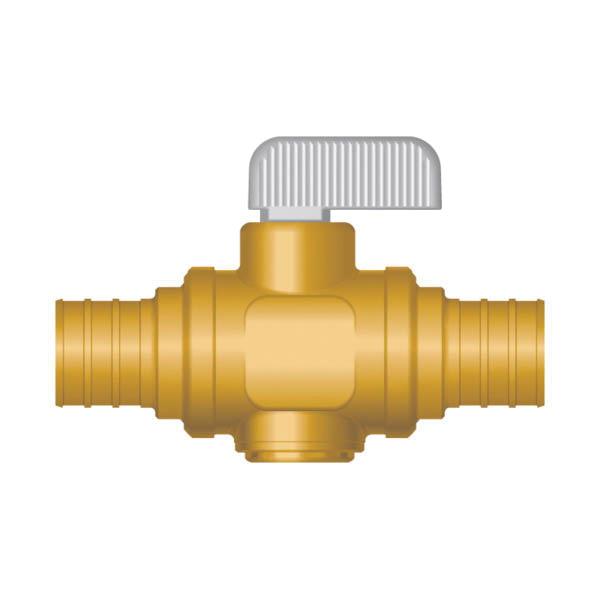

HeatLink® 23700NL Series 23722NL Straight Ball Valve, 3/4 in, PEX Insert, 100 psi, Quarter-Turn, Brass, Lead-Free

HeatLink® 23700NL Series 23722NL Straight Ball Valve, 3/4 in, PEX Insert, 100 psi, Quarter-Turn, Brass, Lead-Free

  • Manufacturer: HeatLink Group
  • Brand Name: HeatLink®
  • Part#: HTL23722NL
  • MPN: 23722NL
  • UPC: 627998009084
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

No lead brass (C69300-ecobrass) 3/4" PEX insert x 3/4" PEX insert straight ball valve. SS press sleeves sold separately.

HeatLink® Straight Ball Valve, 23700NL Series, 3/4 in Nominal, PEX Insert Connection, 100 psi, 6 Cv Flow Coefficient (Cv), Quarter-Turn Operator, Brass, Lead-Free, 180 deg F, 2.9 in L

Connection Type      :      PEX Insert
Dimensions      :      2.9 in L
Flow Coefficient (Cv)      :      6 Cv
Lead-Free/Contains Lead      :      Lead-Free
Material      :      Brass
Nominal Size      :      3/4 in
Operator Type      :      Quarter-Turn
Pressure Rating      :      100 psi
Series      :      23700NL Series
Temperature Rating      :      180 deg F
  • ASTM F1807 compliant PEX insert fitting
  • No lead brass (C69300-ecobrass)
  • Superior dezincification resistance
  • Quarter turn shut off
