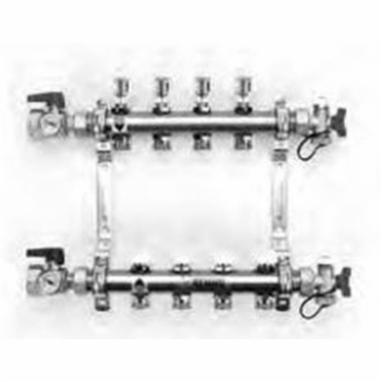

Rehau® 381112-001 Manifold With Complete Circuit Isolation Capabilities, 1 in, BSPP x NPT, Stainless Steel, 20 gpm
- Manufacturer: Rehau
- Brand Name: Rehau®
- Part#: REH381112-001
- MPN: 381112-001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Pre-assembled and factory pressure tested. For use with 10.1 mm and 3/8 in, 1/2 in, 5/8 in and 3/4 in. RauPEX pipes using Rehau® manifold connections (sold separately). Compatible with manifold valve actuator (Article 260166). May be mounted in any orientation (e.g., inverted, horizontal and more).
Rehau® Manifold With Complete Circuit Isolation Capabilities, BSPP x NPT Connection, 20 gpm Flow Rate, 150 psi, 180 deg F, 12 Outlets, 1 in, Stainless Steel, 29.13 in L x 12.83 in H x 3.9 in D
| Connection Type | : | BSPP x NPT |
| Dimensions | : | 29.13 in L x 12.83 in H x 3.9 in D |
| Flow Rate | : | 20 gpm |
| Material | : | Stainless Steel |
| Number of Outlets | : | 12 |
| Pressure Rating | : | 150 psi |
| Size | : | 1 in |
| Temperature Rating | : | 180 deg F |
- Visual flow gauges (GPM) for each circuit on supply side, flow gauges have internal polymer cages to prevent build up of debris, can be used for individual circuit isolation and have an accuracy of +/- 10%
- Circuit balancing/isolation valves on return side
- Two-1 in NPT supply and return manifold isolation valves with thermometer housings, two-mini thermometers included
- Two-air vent/boiler drain valves with manual air vent and 3/4 in GHT hose connection
- Manifold circuit chart
- Vent key and key holder
