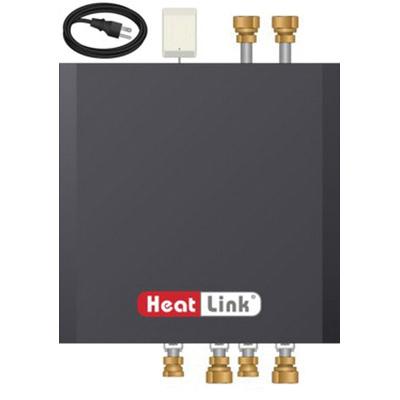

HeatLink® HEP025P Isolation Heat Exchanger Panel

The main application of the HEP isolation heat exchanger panel is to provide single wall isolation between a DHW tank and a heating system. This panel is not a temperature control device. The secondary water temperature is wholly dependent on the temperature of the primary supply water. The panel is pre-wired to work with an optional DHW priority switch which is mounted outside the panel.

HeatLink® Isolation Heat Exchanger Panel

• When a thermostat calls for heat, its internal 24 V contacts close, the auxiliary terminals close and both pumps turn-on
• When the requirements of the thermostat are met, the internal contacts of the thermostat open, the auxiliary contacts open and the pumps stop
• The Exclusive TankSaver® design aids the glass lining process to ensure optimum coverage and guards tank openings for watertight connections
• If the optional DHW priority flow switch is installed and the DHW flow is above the factory setting for this device, the primary pump stops and the auxiliary contacts open
• When the DHW flow drops below the factory setting the panel resumes normal operation

• Video Link https://youtu.be/UGScfqfTP3c
