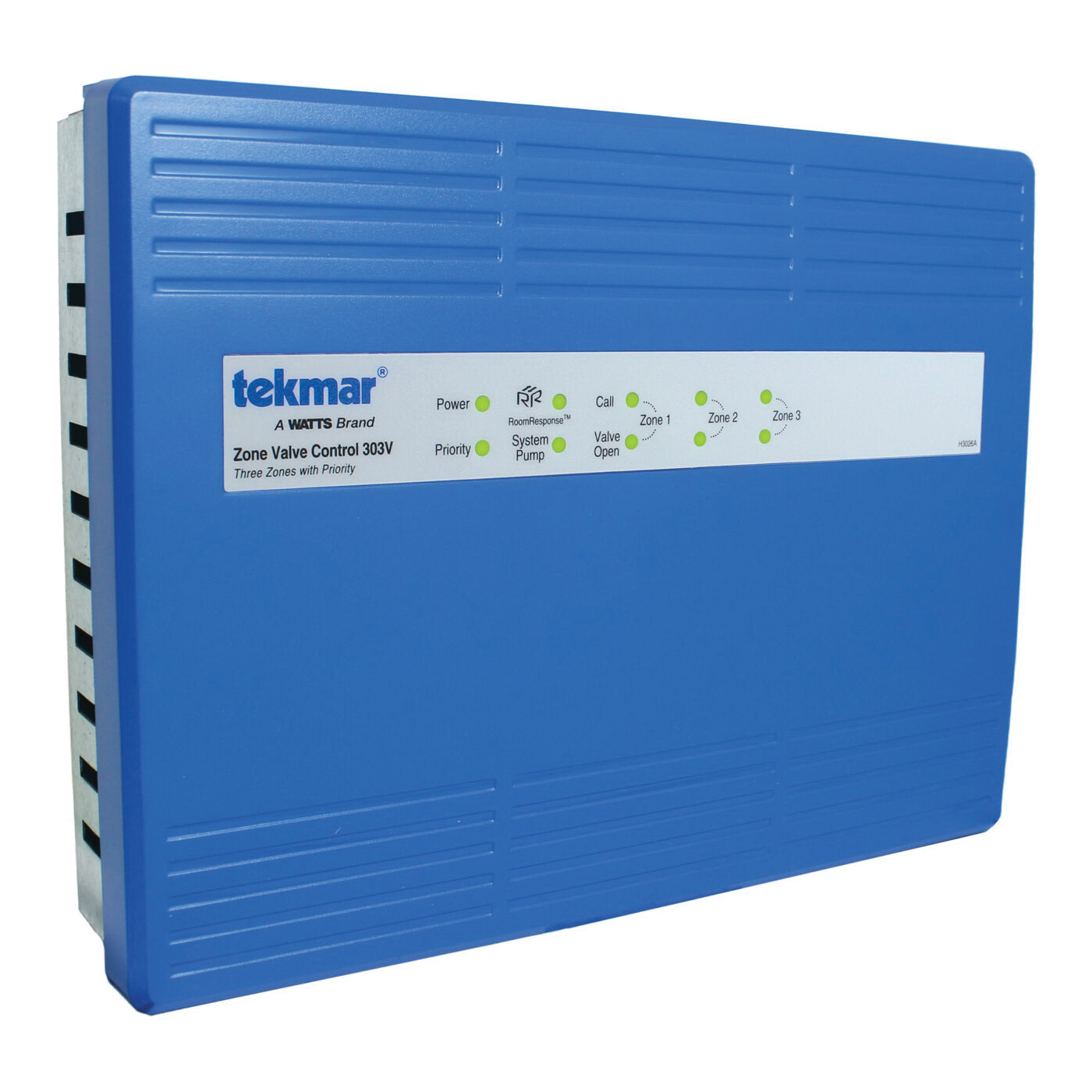

Tekmar® 303V Zone Valve Control, 3-Zone, 24 VAC, 7 VA
- Manufacturer: Watts Water Technologies
- Brand Name: Tekmar®
- Part#: TEK303V
- MPN: 303V
- UPC: 779655030320
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Zone Valve Control 303V connects up to three thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 303V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 and 3. The 303V includes optional exercising to prevent circulator seizure when not in use and optional post purge operation of the domestic hot water tank to maximize energy savings. The 303V provides a RoomResponse™ signal to modulating condensing boilers to optimize comfort while improving boiler efficiency.
Tekmar® Zone Valve Control, 3 Zones, 24 VAC, 7 VA, 8-3/16 in Height, 10-11/16 in Width, 2-3/8 in Depth, For Use With: All Low Voltage Thermostats, 2, 3 and 4-Wire Zone Valve
| Depth | : | 2-3/8 in |
| Height | : | 8-3/16 in |
| Number of Zones | : | 3 |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Power Rating | : | 7 VA |
| Suitable For Use With | : | All Low Voltage Thermostats, 2, 3 and 4-Wire Zone Valve |
| Voltage Rating | : | 24 VAC |
| Width | : | 10-11/16 in |

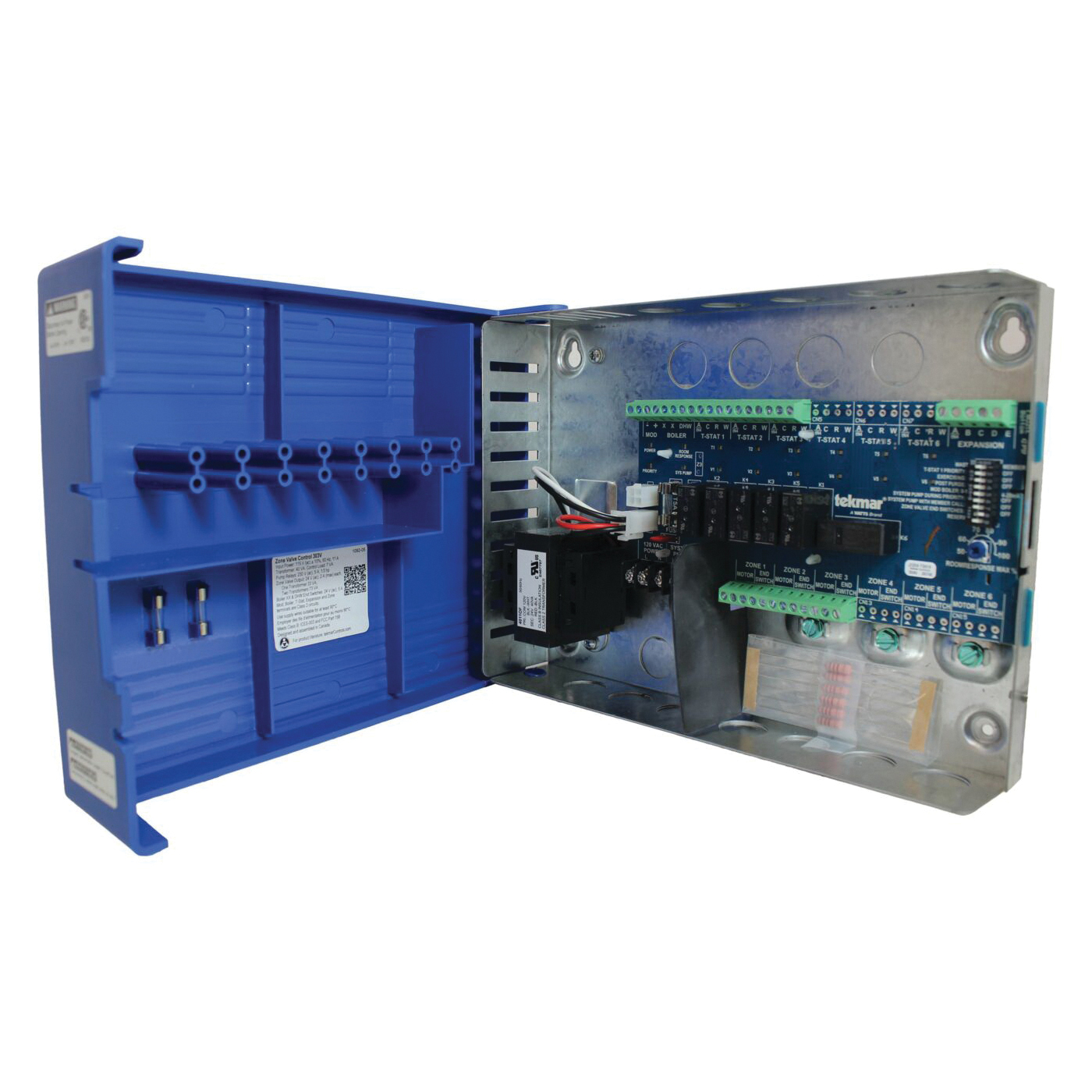

- Fuses protect transformers and pumps
- LED for each zone, priority, end switch and RoomResponse™, away signal shared between Tekmar® thermostats
- Four ground screws, top, bottom and back conduit knockouts
- Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
- Zone priority, priority override
- Post purge, LED for each zone, priority, end switch and RoomResponse™
