Tekmar® 301P TEK301P
  1. pin-int

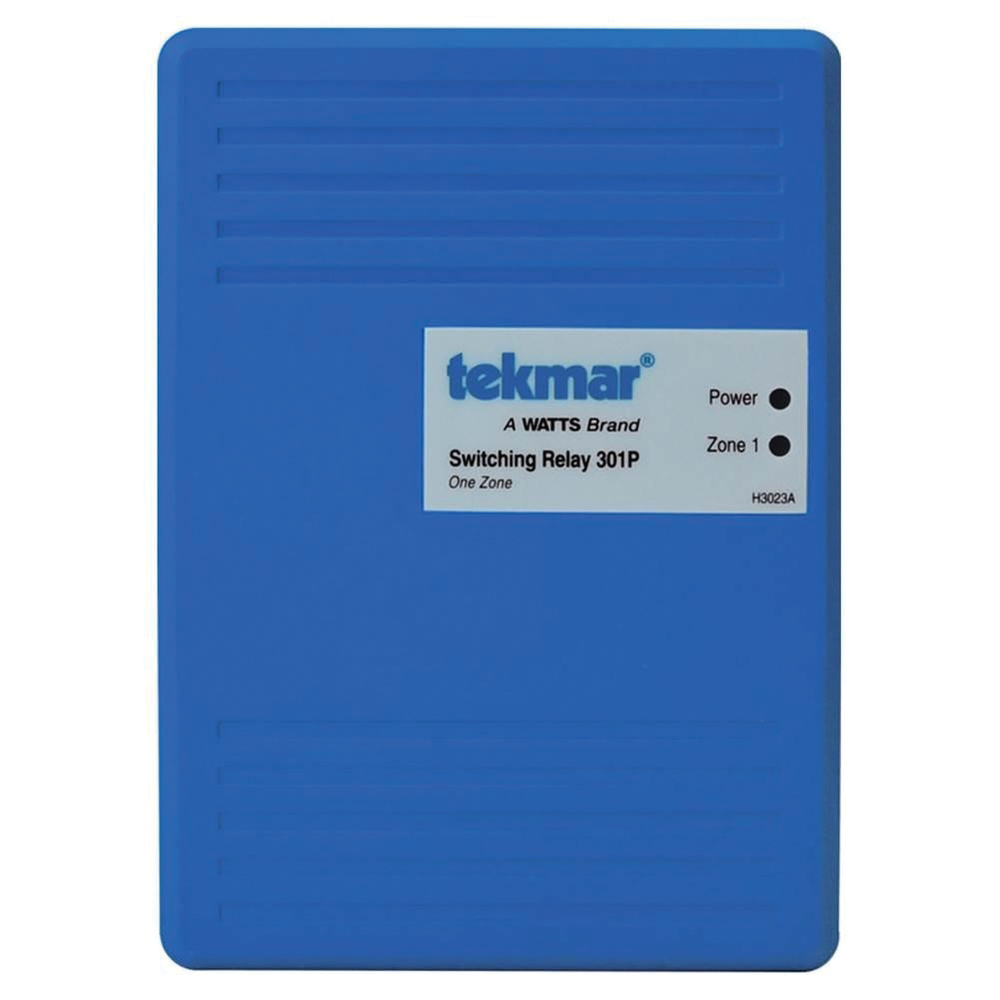

Tekmar® 301P Switching Relay, 115 V, 5 A

Tekmar® 301P Switching Relay, 115 V, 5 A

  • Manufacturer: Watts Water Technologies
  • Brand Name: Tekmar®
  • Part#: TEK301P
  • MPN: 301P
  • UPC: 779655030105
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The switching relay 301P connects to one thermostat and operates a circulator and boiler to provide heating to a hydronic heating system. The 301P includes optional exercising to prevent circulator seizure when not in use and optional post purge operation maximize energy savings.

Tekmar® Switching Relay, 115 V, 5 A, 60 Hz, LED Display, NEMA 1 Enclosure, 32 to 122 deg F, 4-15/16 in Overall Width, 6-11/16 in Overall Height, For Use With: Low-Voltage Thermostat

Amperage Rating      :      5 A
Display Type      :      LED
Enclosure Type      :      NEMA 1
Frequency Rating      :      60 Hz
Overall Height      :      6-11/16 in
Overall Width      :      4-15/16 in
Plumbing and Flow Control      :      Plumbing and Flow Control
Suitable For Use With      :      Low-Voltage Thermostat
Temperature Rating      :      32 to 122 deg F
Voltage Rating      :      115 V
  • Top, bottom and back conduit knockouts, fuse protects pump
  • 20 VA transformer
  • Thermal circuit breaker protects transformer
  • Compatible with all low voltage thermostats, pump exercising
  • Post purge, LED for power and zone
  • Hinged cover
