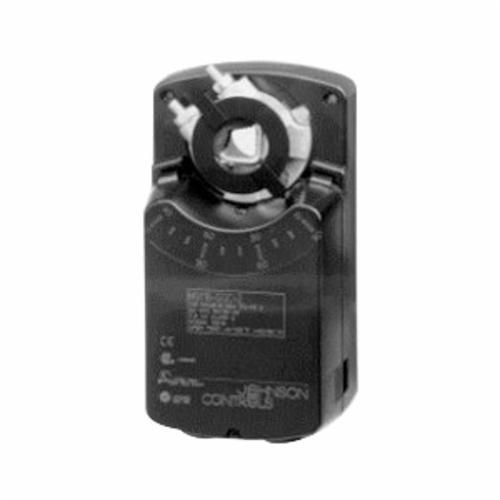

Johnson Controls M9116 Series M9116-AGA-2 Electric Actuator, 24 VAC/VDC
- Manufacturer: Johnson Controls
- Brand Name: Johnson Controls
- Part#: JOHM9116-AGA-2
- MPN: M9116-AGA-2
- UPC: 785028263582
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Johnson Controls Electric Actuator, M9116 Series, 24 VAC/VDC, 50 Hz, 60 Hz, VA Rating: 6.5 VA, 140 in-lb Torque, Screw Terminal Connection, Control Signal: Floating, On-Off, 0 to 90 deg in 5 deg Increments, Mechanically Limited to 93 deg Rotation Angle, NEMA 1, IP42 Enclosure, 70 to 115 s Timing, 45 dBA Noise Level, -4 to 122 deg F Ambient, -40 to 186 deg F Storage
| Connection Type | : | Screw Terminal |
| Control Signal | : | Floating, On-Off |
| Enclosure Type | : | NEMA 1, IP42 |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Noise Level | : | 45 dBA |
| Rotation Angle | : | 0 to 90 deg in 5 deg Increments, Mechanically Limited to 93 deg |
| Series | : | M9116 Series |
| Temperature Rating | : | -4 to 122 deg F Ambient, -40 to 186 deg F Storage |
| Timing Range | : | 70 to 115 s |
| Torque Rating | : | 140 in-lb |
| VA Rating | : | 6.5 VA |
| Voltage Rating | : | 24 VAC/VDC |
- Four control inputs meet the needs of most applications
- Output position feedback provides simple closed-loop control with accurate position sensing
- Electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected
- Master/slave operation allows synchronized control for two actuators
- Stacked for tandem applications
- Zero and span adjustment (-HGx models) allows sequential operation of dAers from a single input signal of DC 0(2) to 10 V, DC 0(4) to 20 V or DC 0(4) to 20 mA
- Jumper selectable rotation direction and manual gear release simplifies installation, setup, and field adjustments
- NPT threaded housing provides easy connection for electrical fittings
- Manual gear release simplifies damper/valve setup and commissioning
