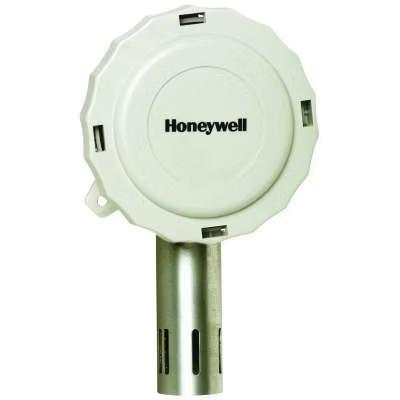

Honeywell H7625 Series H7625B2006/U Humidity/Temperature Transducer, 18 to 40 VDC, 18 to 28 VAC, 4 to 20 mA

The H7625, H7635, and H7655 are highly accurate, stable humidity transducers designed for use with HVAC controllers such as the T7350 Thermostat, T775U Remote Humidity Controller, and W7760 Direct Digital Controllers. The Ceramic Technology humidity sensor is not affected by condensation and provides excellent long-term stability.

Honeywell Humidity/Temperature Transducer, H7625 Series, 4 to 20 mA, 18 to 40 VDC, 18 to 28 VAC, +/-3% Accuracy, Duct Mounting, 20 kOhm NTC Sensor, -10 to 140 deg F, 4-9/16 in H x 3 in W x 7/8 in D, Domestic/Import: Domestic

• Ceramic Technology overcomes the limitations of other resistance based humidity sensors that use water soluble polymer coatings
• Ceramic Technology allows sensors to recover fully from condensation, fog, and high humidity
• Highly accurate, repeatable, stable output with negligible hysteresis
• Temperature compensated output
• Zero and span trimmers, and increment/decrement recalibration feature
• All units have selectable 4-20 mA, 0-10 Vdc, or 0-5 Vdc output. NIST traceable 2%, 3%, and 5% calibration, every sensor calibrated at 3 different points
• All humidity sensors use the same enclosure as the T7770 sensor, except the H7655A, which uses the T7047-like enclosure

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_H7625B2006_U_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Honeywell_H7625B2006_U_Specification_Sheet.pdf
