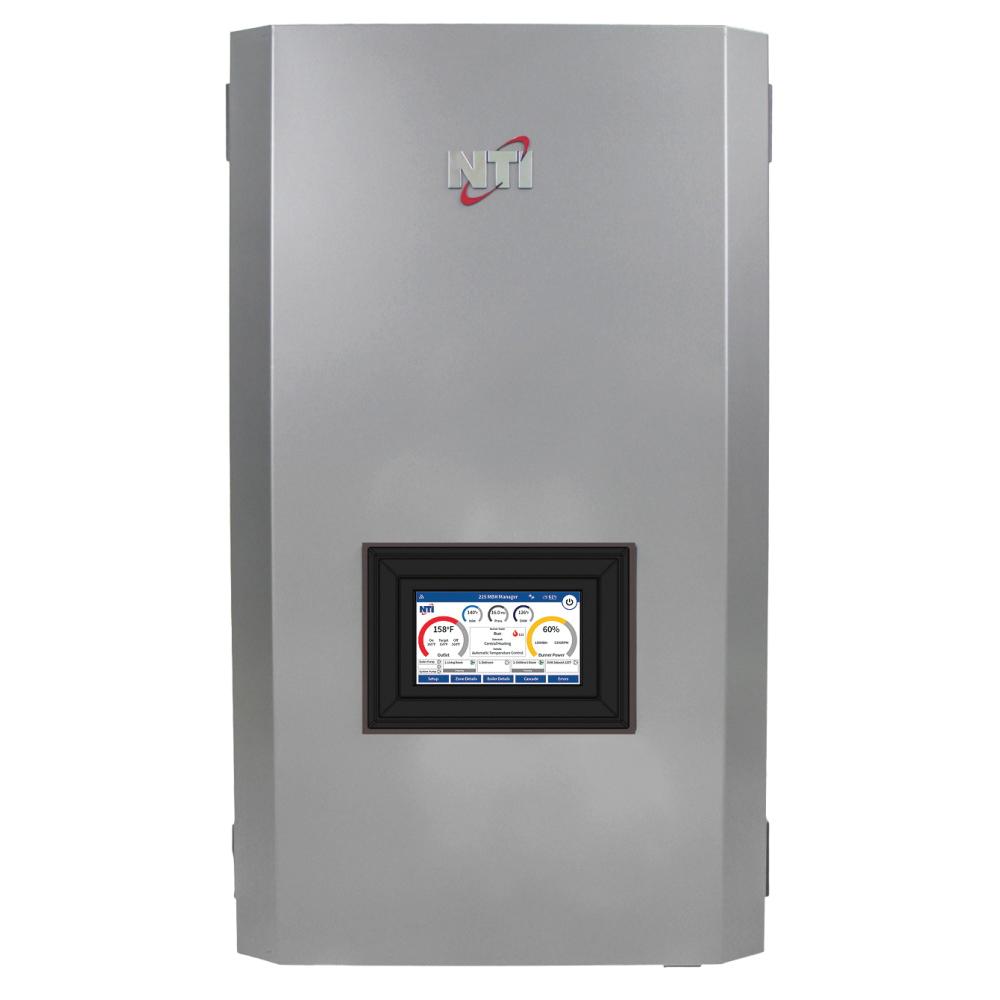

NTI TFTN Series TFTN110 High Efficiency Condensing Boiler, 95 % AFUE, 11 to 110 MBtu/hr BTU, 101 MBtu/hr Capacity, MNPT
- Manufacturer: Ariston Group
- Brand Name: NTI
- Part#: NTITFTN110
- MPN: TFTN110
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
NTI is pleased to offer the next generation of our flagship boiler line. The new TFTN offers onboard Wi-Fi and a new touchscreen that brings more functionality than previously available. Our new control is designed to be easy and intuitive, yet powerful enough to offer all the features and functionality required by today's installing contractor. Built on the same platform as our market leading TFT line, this next generation brings the same high level of quality you've come to expect, with the added benefits of our redesigned control. Our next generation TFTN is currently available in sizes 85, 110, 150 and 199 MBH. Larger sizes from 285 to 850 mbh are available for commercial applications.
NTI High Efficiency Condensing Boiler, TFTN Series, 120 VAC, 12 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 11 to 110 MBtu/hr BTU, 101 MBtu/hr Capacity, 80 psi Pressure, MNPT Connection, Gas Fuel, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 2 in, 3 in, 101 MBtu/hr DOE Heating, 1 in Diameter Flue, Spark Ignition, Net BTU Rating: 88 MBtu/hr, Wall Mounting, Stainless Steel, Dimensions: 42-3/4 in H x 19-7/8 in W x 17-3/8 in D
| AFUE Rating | : | 95 % |
| Amperage Rating | : | 12 A |
| BTU Rating | : | 11 to 110 MBtu/hr |
| Burner Type | : | Modulating |
| Capacity | : | 101 MBtu/hr |
| Chimney/Breeching/Vent Size | : | 2 in, 3 in |
| Connection Type | : | MNPT |
| DOE Heating Capacity | : | 101 MBtu/hr |
| Dimensions | : | 42-3/4 in H x 19-7/8 in W x 17-3/8 in D |
| Flue Diameter | : | 1 in |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Gas |
| Ignition Type | : | Spark |
| Material | : | Stainless Steel |
| Mounting Type | : | Wall |
| Net BTU Rating | : | 88 MBtu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 80 psi |
| Series | : | TFTN Series |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 VAC |
- EZ setup wizard - programming your boiler has never been easier
- Top and bottom plumbing connections for easy installation
- Built-in zone control - up to three-heating zones plus domestic hot water (expandable to six-heating zones using the optional N-Link zone expansion module - part # 87633-1)
- Remote access for programming and troubleshooting
- Built-in low water cut-off, saving time and money
- Easy-to-read full color graphics
- 120 V convenience outlet
