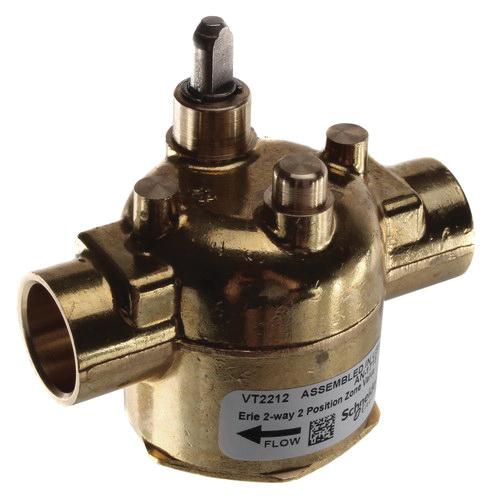

TAC PopTop™ VT Series VT2212 PopTop Zone Valve, 1/2 in, Sweat, 2.5 Cv, Brass
- Manufacturer: Schneider Electric
- Brand Name: TAC
- Part#: INVVT2212
- MPN: VT2212
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Erie's line of motorized hydronic valves, the PopTop™, provides convenient, reliable and easy installation for a variety of heating and cooling applications. The PopTop™ makes installation a snap with easy, one handed removal or engagement of the actuator to the valve body.
TAC PopTop™ PopTop Zone Valve, VT Series, 1/2 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 2-Position, 300 lbf/sq-in, 2.5 Cv Flow Coefficient (Cv), Brass Stem, Brass Seat, Brass, Hot or Chilled Water, 50% Glycol Service, 104 deg F Ambient, 32 to 200 deg F Fluid
| Connection Type | : | Sweat |
| Flow Coefficient (Cv) | : | 2.5 Cv |
| Material | : | Brass |
| Nominal Size | : | 1/2 in |
| Number of Ways/Position | : | 2-Ways, 2-Position |
| Pressure Rating | : | 300 lbf/sq-in |
| Seat Material | : | Brass |
| Series | : | VT Series |
| Service Type | : | Hot or Chilled Water, 50% Glycol |
| Stem Material | : | Brass |
| Temperature Rating | : | 104 deg F Ambient, 32 to 200 deg F Fluid |
- Direct replacement for all existing two-position PopTop™ applications
- Hysteresis synchronous motor for long life
- Spring return operation provides a fail-safe
- Valve body rated for 300 psi static pressure
- Actuator mounts directly onto valve body without need for linkages or calibration
- Manual override lever (normally closed only)
- Actuator can be replaced without any tools, or removal of valve from system
- Wide variety of ports and Cv's for better control
- Buna-N paddle
