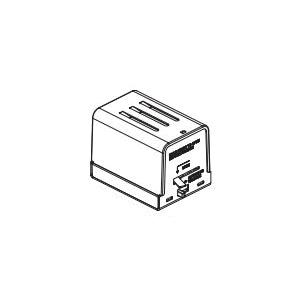

TAC PopTop Series AG13A02A Actuator
- Manufacturer: Schneider Electric
- Brand Name: TAC
- Part#: INVAG13A02A
- MPN: AG13A02A
- UPC: 711426601862
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The PopTop Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve's actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler.
TAC Actuator, PopTop Series, Number of Ways/Position: 2-Position, 24 VAC, 50/60 Hz, NC, Manual Override Lever Operator, 4 to 5 s Timing, 32 to 200 deg F
| Configuration | : | NC |
| Frequency Rating | : | 50/60 Hz |
| Number of Ways/Position | : | 2-Position |
| Operator Type | : | Manual Override Lever |
| Series | : | PopTop Series |
| Temperature Rating | : | 32 to 200 deg F |
| Timing Range | : | 4 to 5 s |
| Voltage Rating | : | 24 VAC |
- Synchronous motor drive with spring return
- Mounts directly onto the body without the need for linkages or calibration
