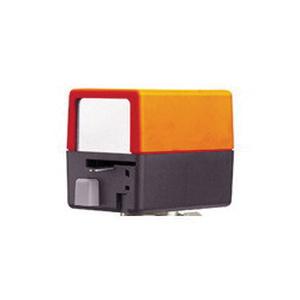

BELIMO® ZONE24NC-S Valve Actuator, Steel
- Manufacturer: BELIMO Holding AG
- Brand Name: BELIMO®
- Part#: BLMZONE24NC-S
- MPN: ZONE24NC-S
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
BELIMO® Valve Actuator, 24 VAC, 50/60 Hz, VA Rating: 7 VA, 6.5 W, 18 in Lead Wire Electrical Connection, 6.5 W Power Consumption, 20 to 40 s Motor Running, 5 s Default, 2.5 to 10 s Variable Timing, 35 dBA Noise Level, NEMA 1, IP20 Enclosure, 90 deg Rotation Angle, On/Off Signal, Maintenance-Free Service, Steel Body, Finish: Galvanized, -40 to 176 deg F
| Body Material | : | Steel |
| Electrical Connection | : | 18 in Lead Wire |
| Enclosure Type | : | NEMA 1, IP20 |
| Finish | : | Galvanized |
| Frequency Rating | : | 50/60 Hz |
| Noise Level | : | 35 dBA |
| Power Consumption | : | 6.5 W |
| Power Rating | : | 6.5 W |
| Rotation Angle | : | 90 deg |
| Service Type | : | Maintenance-Free |
| Signal Type | : | On/Off |
| Temperature Rating | : | -40 to 176 deg F |
| Timing Range | : | 20 to 40 s Motor Running, 5 s Default, 2.5 to 10 s Variable |
| VA Rating | : | 7 VA |
| Voltage Rating | : | 24 VAC |
- 90 deg angle of rotation
- Integrated into lever (NC only)
- Manual lever override
- SPST 0.4 A resistive (0.4 A inductive) at 24 VAC auxiliary switch
- For use with zone valves
