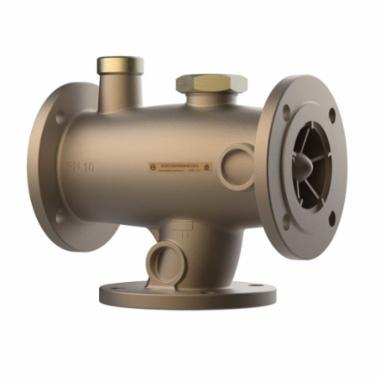

resideo MX Series MX132LF MX132LF/U Mixing Valve, 3 in, NPT, 50 gpm, 155 psi, Bronze/Stainless Steel, Lead-Free
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWMX132LF/U
- MPN: MX132LF/U
- UPC: 085267437295
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Braukmann MX series high capacity mixing valve provides accurate control of hot water temperatures based on the mixing of hot and cold water. The valve features a PTFE-coating that increases its product life and reduces the need for callbacks. It also has a tamper evident temperature adjustment and a recirculation port that supports fast responses.
resideo Mixing Valve, MX Series, Model: MX132LF, 3 in Nominal, NPT Connection, 50 gpm Flow Rate, 155 psi, 50 Cv Flow Coefficient (Cv), Gun Metal Seal, Bronze/Stainless Steel, Metallic, Non-Potable Water, Potable Water Media, Lead-Free, 113 to 149 deg F, 12-13/64 in W
| Color | : | Metallic |
| Connection Type | : | NPT |
| Dimensions | : | 12-13/64 in W |
| Flow Coefficient (Cv) | : | 50 Cv |
| Flow Rate | : | 50 gpm |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Bronze/Stainless Steel |
| Media | : | Non-Potable Water, Potable Water |
| Model | : | MX132LF |
| Nominal Size | : | 3 in |
| Pressure Rating | : | 155 psi |
| Seal Material | : | Gun Metal |
| Series | : | MX Series |
| Temperature Rating | : | 113 to 149 deg F |
- Dual purpose mixing or diverting valve
- Constant water temperature under different operating conditions
- Proportional valve (control of hot and cold water)
- Flow reduction in seconds if cold water supply is interrupted
- Maintains temperature with extremely low minimum flows
- Temperature adjustable, tamper evident
- Install in any position, heat trapping not required
- Recirculation connection for fast response
- Bronze/stainless construction
- Wear surfaces PTFE-coated to prevent deposit build up
- Tapped flange connections 2-1/2 and 3 in
- Allen wrench for temperature adjustment included
