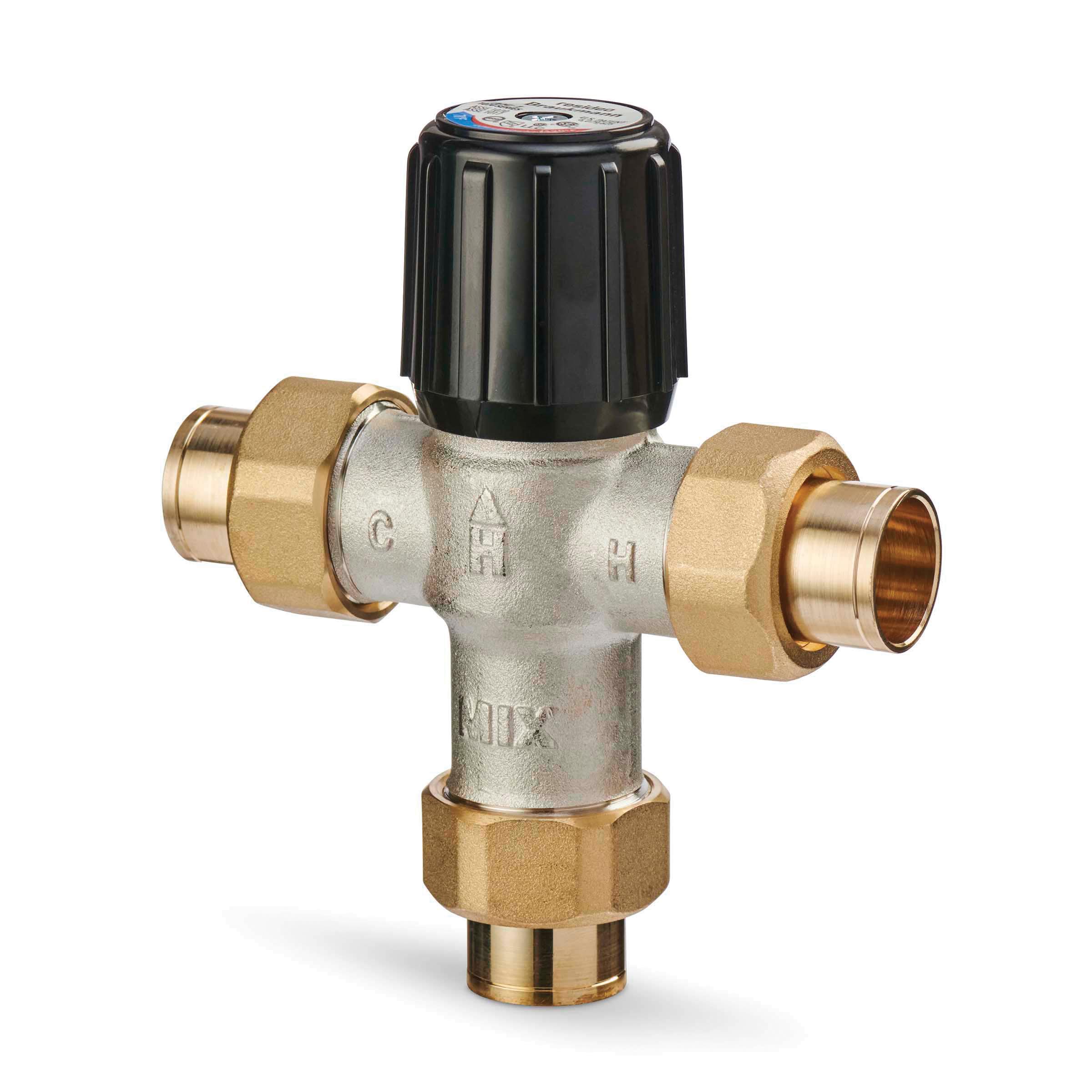

resideo AM-1 1070 Series AM101C1070-US-1LF Hydronic Mixing Valve, 3/4 in, Sweat, 0.5 gpm, 150 psi, Brass, Lead-Free
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWAM101C1070-US-1LF
- MPN: AM101C1070-US-1LF
- UPC: 085267337762
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The AM100 series of mixing valves from resideo accurately adjust, maintain and limit the hot water temperature to a desired setting selected by the user. More usable hot water is available with a AM-1 mixing valve from resideo, as it raises the water heater storage temperature setting and limits mixed outlet water temperature to a safe level.
resideo Hydronic Mixing Valve, AM-1 1070 Series, 3/4 in Nominal, Sweat Connection, 0.5 gpm Flow Rate, 150 psi, 1.8 Cv Flow Coefficient (Cv), EPDM Seal, Brass, Finish: Nickel-Plated/PTFE-Coated, Metallic, Water Media, Thermostatic Valve, Lead-Free, 70 to 120 deg F, 4.9 in L x 5.6 in H
| Color | : | Metallic |
| Connection Type | : | Sweat |
| Dimensions | : | 4.9 in L x 5.6 in H |
| Finish | : | Nickel-Plated/PTFE-Coated |
| Flow Coefficient (Cv) | : | 1.8 Cv |
| Flow Rate | : | 0.5 gpm |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Brass |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Series | : | AM-1 1070 Series |
| Temperature Rating | : | 70 to 120 deg F |
| Valve Type | : | Thermostatic |
- Hot water control
- Meets rigid plumbing codes
- Color-coded black hand wheel prevents tampering and is required by the new ASSE 1070 plumbing standards
- PTFE-coating resists mineral deposit build up and extends service life
- Free thermostrip included to make temperature setting easy for one person to handle
