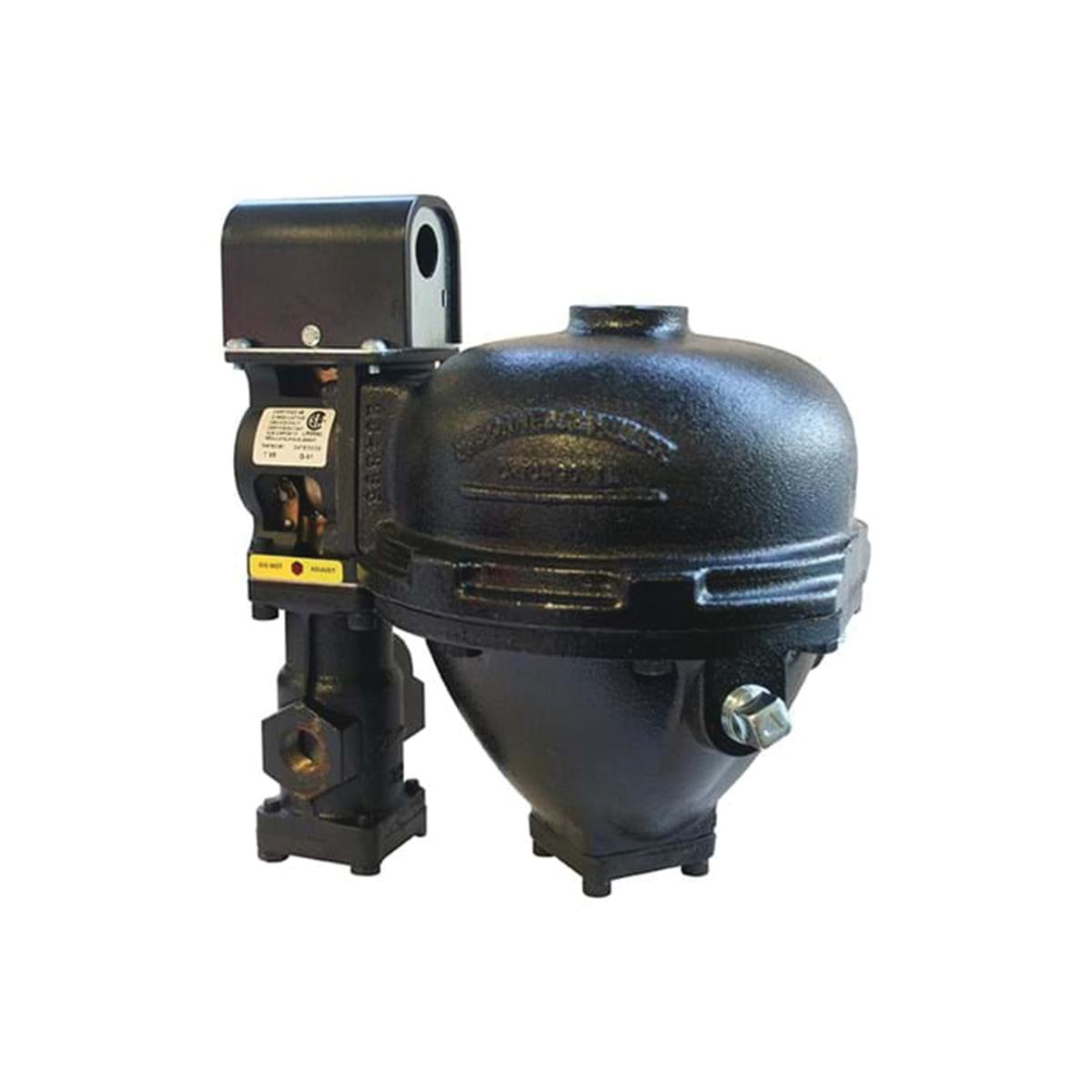

McDonnell & Miller 47-2 Series 132800 Mechanical Water Feeder, 150 psi, NPT, 120/240 VAC
- Manufacturer: Xylem
- Brand Name: McDonnell & Miller
- Part#: MCM47-2
- MPN: 132800
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
McDonnell & Miller Mechanical Water Feeder, 47-2 Series, 10.2/5.1 A Full Load, 61.2 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor, 120/240 VAC, 60 Hz, 150 psi, NPT Connection, 1/2 in Connection, VA Rating: 125 VA, 120 deg F, 10-5/8 in W
| Amperage Rating | : | 10.2/5.1 A Full Load, 61.2 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Dimensions | : | 10-5/8 in W |
| Frequency Rating | : | 60 Hz |
| Model | : | 47-2 |
| Pressure Rating | : | 150 psi |
| Series | : | 47-2 Series |
| Temperature Rating | : | 120 deg F |
| VA Rating | : | 125 VA |
| Voltage Rating | : | 120/240 VAC |
- Continuous maintenance of minimum safe water level and independent of electrical service
- Proportional feed action
- Quick hook-up fittings provided
- Quick-change replaceable cartridge valve and strainer
- Manual reset
- Model 47 can be field upgraded with a #2 switch to add low water cut-off function
