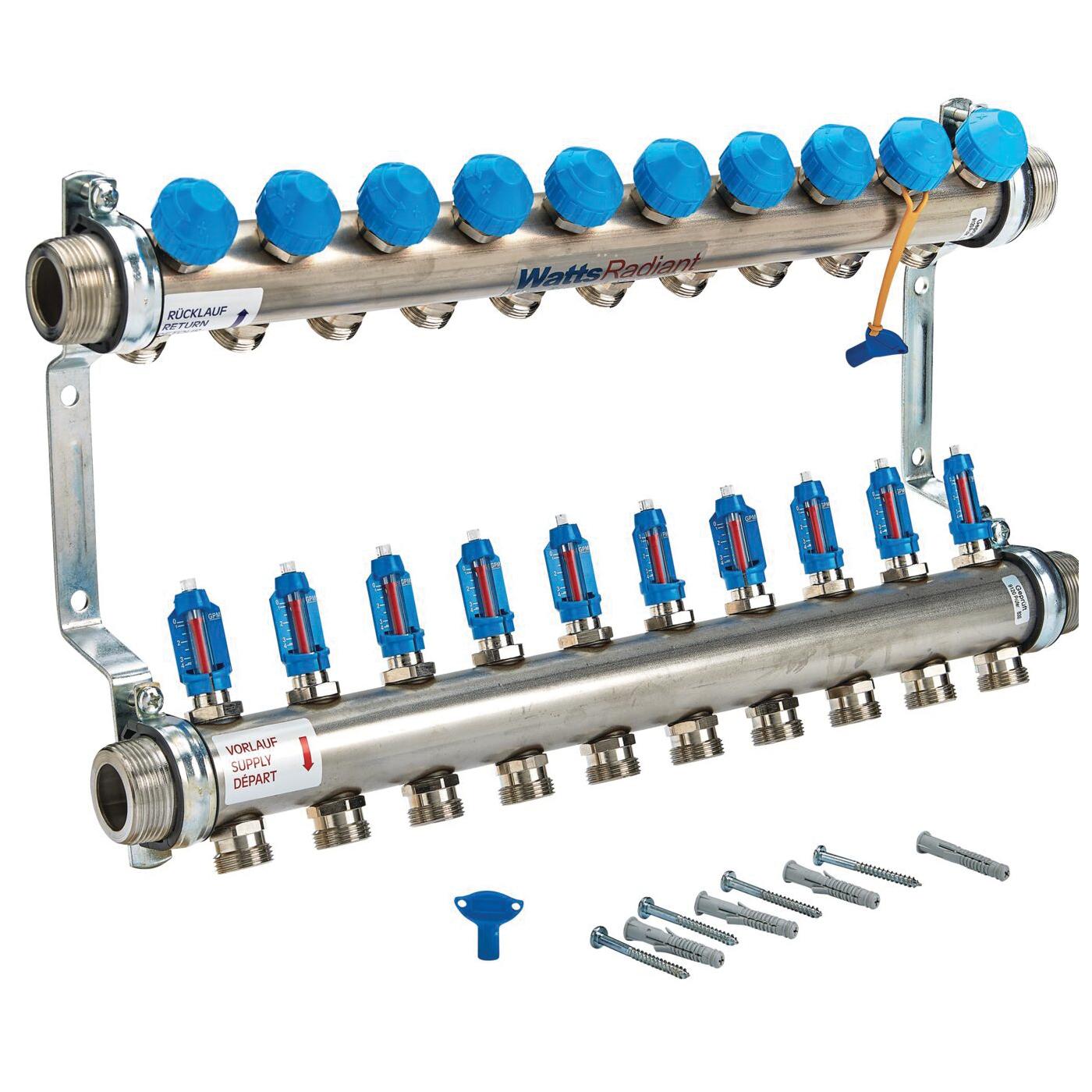

WATTS® D3807610SS Series 81005359 Flowmeter Manifold, BSP, 304 Stainless Steel, 22 gpm Trunk, 4 gpm Circuit, 10-Outlet
- Manufacturer: Watts Water Technologies
- Brand Name: WATTS®
- Part#: WRA81005359
- MPN: 81005359
- UPC: 840213074050
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
WATTS® Flowmeter Manifold, D3807610SS Series, BSP Connection, 22 gpm Trunk, 4 gpm Circuit Flow Rate, 87 psi, 167 deg F, 10 Outlets, 2-1/8 in Circuit Spacing, Manifold Number: M-10, 304 Stainless Steel, Material Standard: ANSI
| Circuit Spacing | : | 2-1/8 in |
| Connection Type | : | BSP |
| Flow Rate | : | 22 gpm Trunk, 4 gpm Circuit |
| Manifold Number | : | M-10 |
| Material Standard | : | ANSI |
| Material | : | 304 Stainless Steel |
| Number of Outlets | : | 10 |
| Plumbing and Flow Control | : | Plumbing and Flow Control |
| Pressure Rating | : | 87 psi |
| Series | : | D3807610SS Series |
| Temperature Rating | : | 167 deg F |
- Flexible, modular and singular design system
- Easy-to-assemble construction
- Precise flow control and balancing
- Fitting for both PEX and Onix radiant tubing
- No sealant, no teflon
- Vent/purge assembly allows even easier purging
- Gaskets allow air or water pressure test
- Flowmeter valves allow circuit isolation
- Mounts in a 2 x 4 in wall
- Easy to add extra circuits
- 4-wire actuators for individual circuit control
- Bring supply/return in from either end
- Each circuit can be individually balanced by adjusting the valve located under the blue cap or under the flowmeter
- Circuit can be completely isolated by closing balancing valves under blue caps and inside flowmeters
- For use with Onix, radiantPEX+ and radiantPEX-AL tubing and connection
