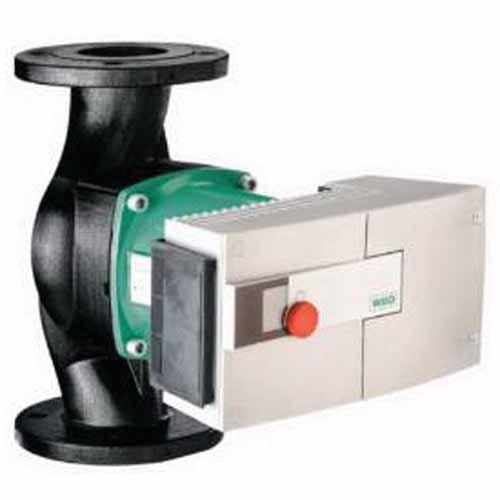

Wilo® Stratos Series 2163592 Circulator Pump, 83.7 gpm, 25 to 470 W, 230 V, 0.2 to 2.05 A, 60 Hz, 145 psi Max Pressure
- Manufacturer: Wilo USA
- Brand Name: Wilo®
- Part#: WLO2163592
- MPN: 2163592
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Wilo® Circulator Pump, Stratos Series, 83.7 gpm Flow Rate, 39 ft Maximum Head, 25 to 470 W, 230 V, 0.2 to 2.05 A, 60 Hz, 145 psi Maximum Pressure, 1400 to 4600 rpm Motor Speed Rating, 0.469 hp, 1/2 x 1/4 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 230 deg F Fluid, Iron, 10 in L x 12.36 in W, Additional Information: Glass-Filled Plastic Impeller Material
| Additional Information | : | Glass-Filled Plastic Impeller Material |
| Amperage Rating | : | 0.2 to 2.05 A |
| Body Material | : | Cast Iron |
| Connection Size | : | 1/2 x 1/4 in |
| Connection Type | : | NPT Flanged |
| Dimensions | : | 10 in L x 12.36 in W |
| Flow Rate | : | 83.7 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.469 hp |
| Impeller Material | : | 40% Glass-Filled Plastic |
| Material | : | Iron |
| Maximum Head | : | 39 ft |
| Maximum Pressure | : | 145 psi |
| Motor Speed Rating | : | 1400 to 4600 rpm |
| Mounting Type | : | In-Line |
| Phase | : | 1 ph |
| Power Rating | : | 25 to 470 W |
| Pressure Rating | : | 145 psi Working |
| Series | : | Stratos Series |
| Speed Rating | : | 1400 to 4600 rpm |
| Temperature Rating | : | 230 deg F Fluid |
| Voltage Rating | : | 230 V |
- In line, flanged wet rotor circulator with EC motor and automatic capacity adjustment
- Energy efficiency class A
- Up to 80% power saving compared with constant speed circulating pumps
- Wet rotor circulator with EC motor and integrated automatic capacity adjustment
- Red button technology for very easy operation
- Graphic pump display with rotatable display adjustable from US units (default) to metric
- Pump communication with IF (interface) module that can be easily retrofitted, ideal external operation
- Motor protection with electronic overload protection (min/max voltage, max temp, dry run, overload)
- Interface connection for extending built-in functions, for building automation (BA) systems and external control
- Impeller with 3-dimensional curved blades and rotor can using carbon fiber compound material
- Stainless steel shaft
- Metal impregnated carbon bearing
