Wilo® 2067543 WLO2067543
  1. pin-int

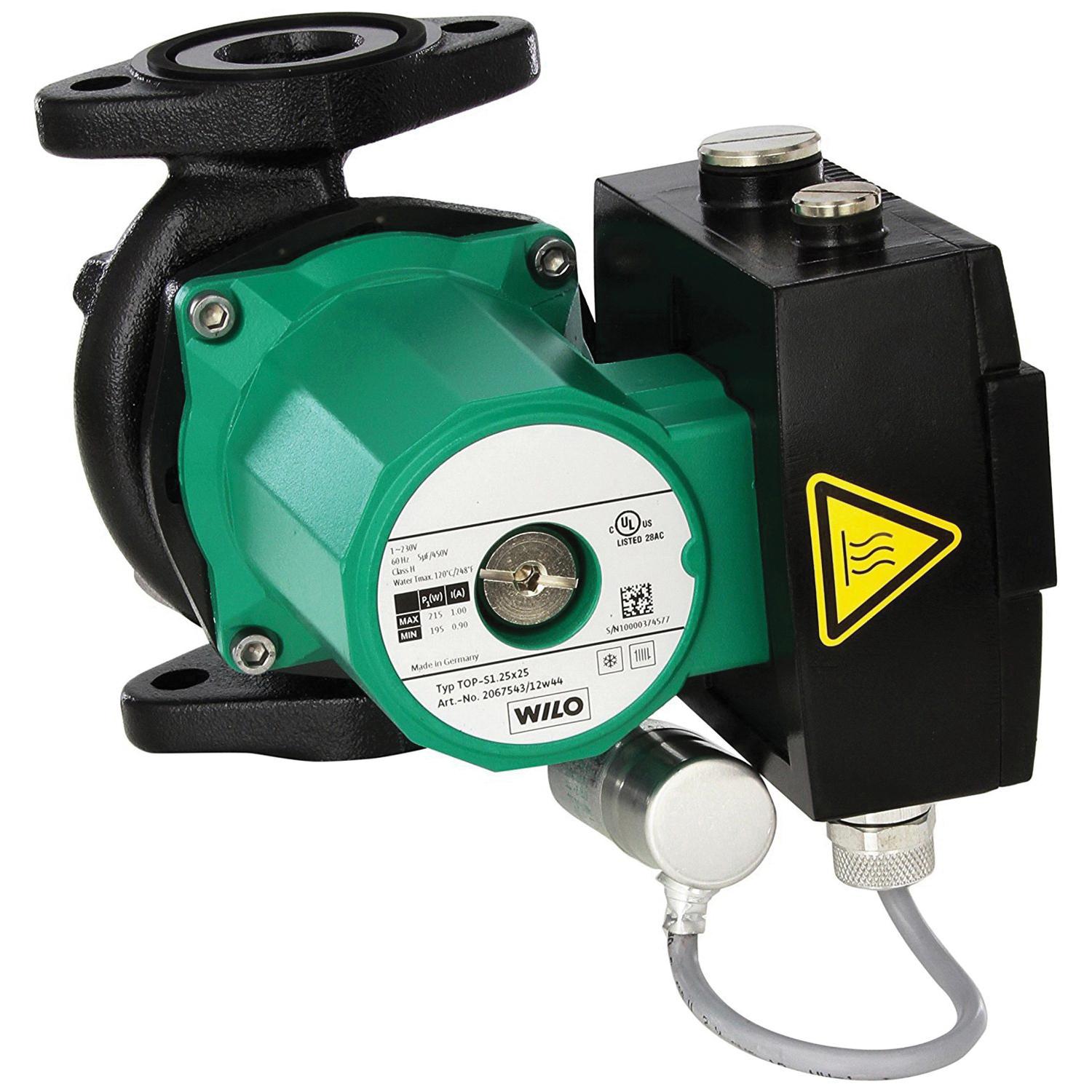

Wilo® TOP-S Series Top S 1.25 x 25 2067543 Circulator Pump, 35 gpm, 195 to 215 W, 230 V, 0.9 to 1 A, 60 Hz, Iron

Wilo® TOP-S Series Top S 1.25 x 25 2067543 Circulator Pump, 35 gpm, 195 to 215 W, 230 V, 0.9 to 1 A, 60 Hz, Iron

  • Manufacturer: Wilo USA
  • Brand Name: Wilo®
  • Part#: WLO2067543
  • MPN: 2067543
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Wilo® Circulator Pump, TOP-S Series, Model: Top S 1.25 x 25, 35 gpm Flow Rate, 27.2 ft Maximum Head, 195 to 215 W, 230 V, 0.9 to 1 A, 60 Hz, 145 psi Maximum Pressure, 2750 to 3100 rpm Motor Speed Rating, 1/8 hp, 1-1/4 in Connection, Flanged Connection, 1 ph Phase, 104 deg F, Iron, 6-1/2 in H x 8-15/165 in W, Additional Information: Glass-Filled Polypropylene Impeller Material

Additional Information      :      Glass-Filled Polypropylene Impeller Material
Amperage Rating      :      0.9 to 1 A
Body Material      :      Cast Iron
Connection Size      :      1-1/4 in
Connection Type      :      Flanged
Dimensions      :      6-1/2 in H x 8-15/165 in W
Flow Rate      :      35 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/8 hp
Impeller Material      :      50% Glass-Filled Polypropylene
Material      :      Iron
Maximum Head      :      27.2 ft
Maximum Pressure      :      145 psi
Model      :      Top S 1.25 x 25
Motor Speed Rating      :      2750 to 3100 rpm
Phase      :      1 ph
Power Rating      :      195 to 215 W
Pressure Rating      :      145 psi Working
Series      :      TOP-S Series
Speed Rating      :      2750 to 3100 rpm
Temperature Rating      :      104 deg F
Voltage Rating      :      230 V
  • Quiet low-maintenance wet rotor circulator
  • Two speed, ultra quiet operation
  • Automatically vented
  • Cataphoresis coating prevents corrosion
  • 1/4 in suction and discharge pressure gauge tappings
  • Sturdy cast aluminum electrical box
  • Short flange to flange dimension
  • Widest commercial wet rotor line in the Industry
  • Stainless steel (X46 Cr13) shaft
  • Impregnated carbon metal bearing
