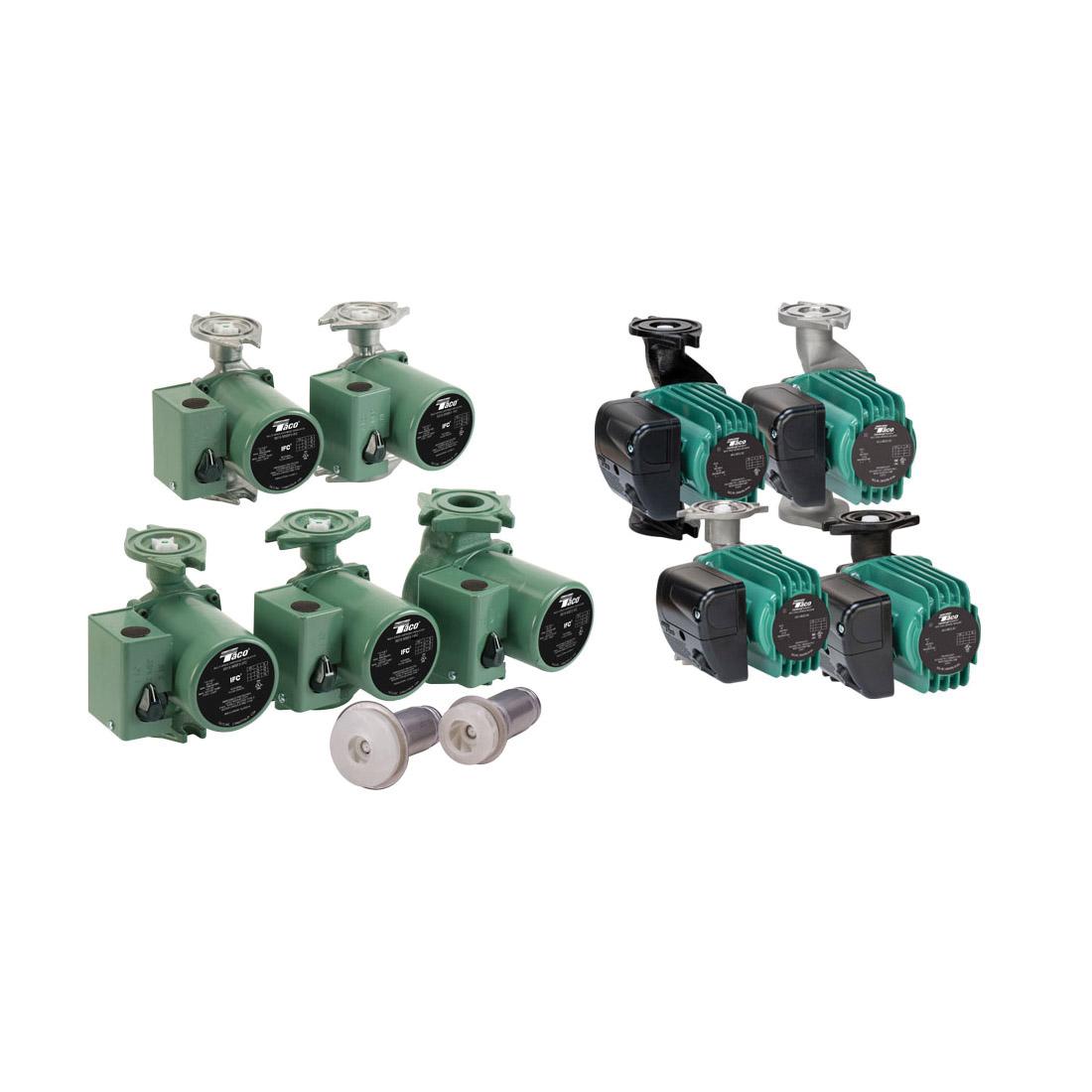

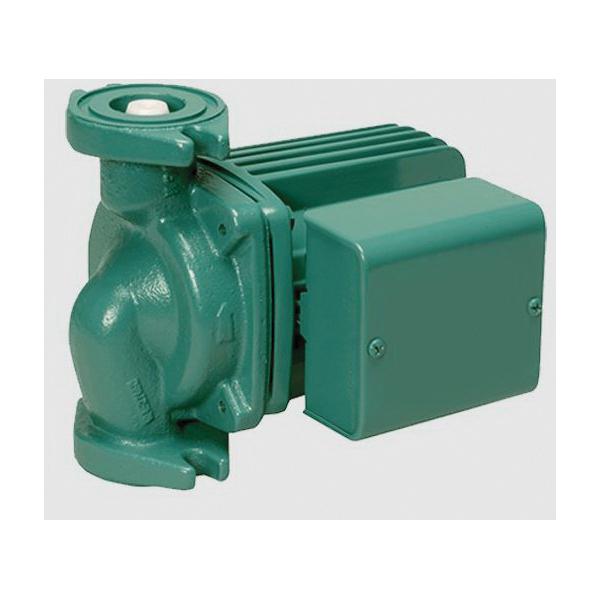

Taco Comfort Solutions® 0013-MSF2-IFC Cartridge Circulator, 32 gpm, 115 VAC, 1.65 A, 60 Hz, 125 psi Max Pressure
- Manufacturer: TACO INC
- Brand Name: Taco Comfort Solutions®
- Part#: TAC0013MSF2IFC
- MPN: 0013-MSF2-IFC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The 0012 3-Speed circulator is designed for high flow / low head applications ideal for large BTU boilers, primary boiler loops and large recirculation systems. The 0013 3-Speed circulator is specifically designed for the wide range of high flow / high head requirements of today's hydronic heating systems. Their 3-Speed switching capability provides fine tuning control to meet system design conditions. The 0012 and 0013 deliver the highest starting torque in their class and include a removable, unibody Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance. The Stainless Steel models can be used for open systems and potable water applications.
Taco Comfort Solutions® Cartridge Circulator, 00 Series, 32 gpm Flow Rate, 115 VAC, 1.65 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, Non-Metallic Impeller, 1 ph Phase, 40 to 210 deg F, Iron/Stainless Steel, 7-9/16 in L x 6-9/64 in W x 6-1/2 in H
| Amperage Rating | : | 1.65 A |
| Body Material | : | Cast Iron |
| Connection Size | : | 3/4, 1, 1-1/4, 1-1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 7-9/16 in L x 6-9/64 in W x 6-1/2 in H |
| Flow Rate | : | 32 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/8 hp |
| Impeller Material | : | Non-Metallic |
| Impeller Type | : | Non-Metallic |
| Material | : | Iron/Stainless Steel |
| Maximum Head | : | 30 ft |
| Maximum Pressure | : | 125 psi |
| Model | : | 0013 |
| Motor Speed Rating | : | 3250 rpm |
| Phase | : | 1 ph |
| Power Rating | : | 195/220/260 W |
| Pressure Rating | : | 125 psi Working |
| Series | : | 00 Series |
| Speed Rating | : | 3250 rpm |
| Temperature Rating | : | 40 to 210 deg F |
| Voltage Rating | : | 115 VAC |
- 3-Speed Switch
- Fine tune to system requirements
- Highest performance & starting torque in class
- Heavy-Duty construction for longer life
- 4-bolt universal flange (0010 only)
- Removable high-flow Integral Flow Check (IFC® ) - Prevents gravity flow - Reduces installation costs - Improves pump performance
- Replaceable cartridge design
- Quiet, efficient operation
- Self-lubricating, no mechanical seal
- Cast Iron or Stainless Steel, flanged construction
